CFP-0812MB - Nidec Copal

Description: DIP Switches / SIP Switches Piano DIP Switch, OFF-ON(down) 8 Position, Convex Actuator 100mA @ 6V DC Gull Wing SMD Terminals, Magazine 20 pc Packaging

Download CFP-0812MB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CFP-0812MB model

Email notifications will be applied after download.

Send part feedback

Symbol

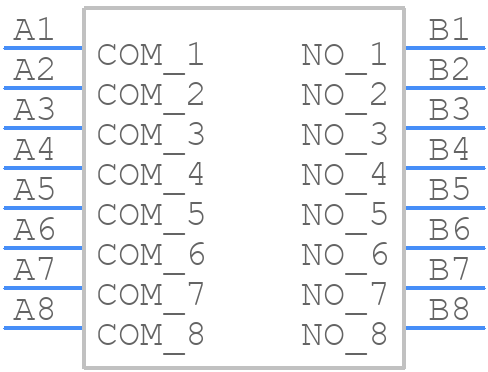

CFP-0812MB - Nidec Copal - PCB symbol

PCB Footprints

CFP-0812MB - Nidec Copal PCB footprint - Other - Other - CFP-0812MB-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for CFP-0812MB
Part Number CFP-0812MB
Manufacturer Nidec Copal
Pin Count 16
Part Category Switch
Package Category Other
Footprint Name Other - CFP-0812MB-2
Released Date Apr 4, 2024
Last Modified Date May 6, 2024 12:51 AM UTC
Pinout / Pin List Click Here (Member Only)

CFP-0812MB Details

Manufacturer Part Number:
CFP-0812MB
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
15 Weeks
Manufacturer:
Nidec Copal Electronics Corporation
JESD-609 Code:
e4
Switch Type:
PIANO DIP SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Community Provided

System Verified

Community Approved

CFP-0812MB Overview

Use the download button to access the CFP-0812MB schematic symbol and PCB footprint.
