CFP-0812TB - Nidec Copal

Description: Piano DIP Switch, OFF-ON(down) 8 Position, Convex Actuator 100mA @ 6V DC Gull Wing SMD Terminals, T&R 500 pc Packaging - Tape and Reel

Download CFP-0812TB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CFP-0812TB model

Email notifications will be applied after download.

Send part feedback

Symbol

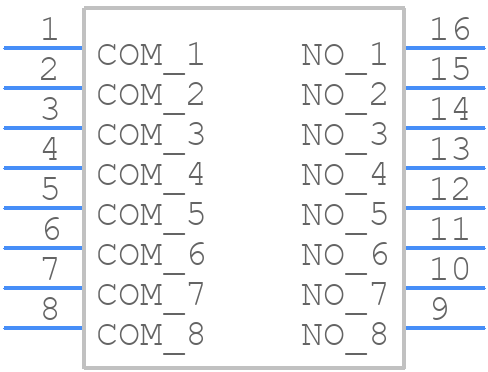

CFP-0812TB - Nidec Copal - PCB symbol

PCB Footprints

CFP-0812TB - Nidec Copal PCB footprint - Other - Other - CFP-0812TB-2

3D Models

CFP-0812TB - Nidec Copal - 3D model - Other - CFP-0812TB-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for CFP-0812TB
Part Number CFP-0812TB
Manufacturer Nidec Copal
Pin Count 16
Part Category Switch
Package Category Other
Footprint Name Other - CFP-0812TB-2
Released Date Dec 3, 2020
Last Modified Date May 6, 2024 12:51 AM UTC
Pinout / Pin List Click Here (Member Only)

CFP-0812TB Details

Manufacturer Part Number:
CFP-0812TB
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
15 Weeks
Manufacturer:
Nidec Copal Electronics Corporation
JESD-609 Code:
e4
Switch Type:
PIANO DIP SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Expert Contribution

System Verified

Community Approved

CFP-0812TB Overview

Use the download button to access the CFP-0812TB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CFP-0, or try a keyword search, such as DIP Switches
