The recommended soldering temperature profile for CFR-12JB-52-12K is 260°C for 10-30 seconds, with a peak temperature of 240°C. However, it's recommended to consult YAGEO's soldering guidelines for specific details.
While the CFR-12JB-52-12K is a general-purpose resistor, it's not specifically designed for high-frequency applications. For high-frequency use, YAGEO recommends their high-frequency resistor series, such as the CFR-12JB-52-12K-HF.
The CFR-12JB-52-12K has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels and doesn't require special handling or storage.
While the CFR-12JB-52-12K meets the requirements for general-purpose electronics, it's not specifically designed for automotive applications. For automotive use, YAGEO recommends their AEC-Q200-compliant resistors, such as the ACAS series.
YAGEO recommends storing the CFR-12JB-52-12K in a dry, cool place with a temperature range of 5°C to 40°C and relative humidity below 80%. Avoid exposing the components to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFR-12JB-52-12K Overview

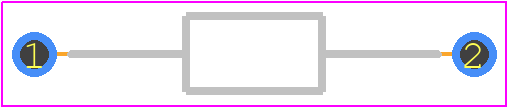

Use the download button to access the CFR-12JB-52-12K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFR-1,
or try a keyword search, such as Carbon Film Resistors
