CFR-50JB-52-5K1 - Yageo Group

Description: Carbon Film Resistors - Through Hole 1/2W 5.1K Ohm 5%

Download CFR-50JB-52-5K1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CFR-50JB-52-5K1 - Yageo Group - PCB symbol
click to zoom

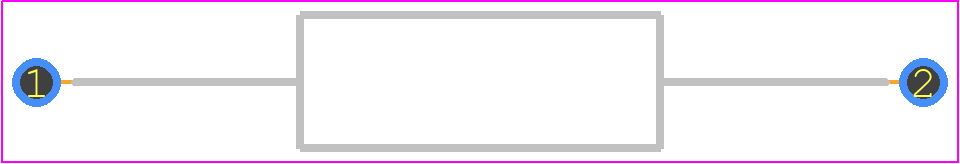

PCB Footprints
CFR-50JB-52-5K1 - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - CFR -50
click to zoom
3D Models
CFR-50JB-52-5K1 - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - CFR -50
click to zoom

CFR-50JB-52-5K1 Details

  • Manufacturer Part Number:

    CFR-50JB-52-5K1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.10.00.65

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    6

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.55 mm

  • Lead Length:

    26 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    3.3 mm

  • Package Length:

    9 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    5100 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    CARBON FILM

  • Temperature Coefficient:

    -500,350 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    350 V

CFR-50JB-52-5K1 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for CFR-50JB-52-5K1 is between 260°C to 280°C for a maximum of 10 seconds.
  • Yes, the CFR-50JB-52-5K1 is a metal film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
  • The CFR-50JB-52-5K1 has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.
  • The CFR-50JB-52-5K1 has a maximum operating temperature of 155°C, but it's recommended to derate the power rating above 125°C to ensure reliability and prevent thermal runaway.
  • Yes, the CFR-50JB-52-5K1 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CFR-50JB-52-5K1 Overview

Use the download button to access the CFR-50JB-52-5K1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFR-5, or try a keyword search, such as Carbon Film Resistors
