CFS-0400TB - Nidec Copal

Description: Slide Switches OFF-ON 4 position DIP switch, flush actuator, 100mA @ 6V DC, gull wing SMD terminals, T&R 1,000 pc packaging, washable

Download CFS-0400TB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

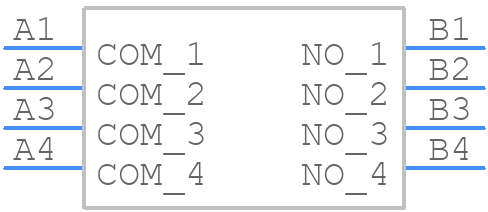

CFS-0400TB - Nidec Copal - PCB symbol
click to zoom
PCB Footprints
CFS-0400TB - Nidec Copal PCB footprint - Other - Other - CFS-0400TB-1
click to zoom
3D Models
CFS-0400TB - Nidec Copal - 3D model - Other - CFS-0400TB-1
click to zoom

CFS-0400TB Details

  • Manufacturer Part Number:

    CFS-0400TB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • YTEOL:

    8

  • Actuator Material:

    POLYAMIDE

  • Actuator Type:

    FLAT KNOB

  • Body Breadth:

    10 mm

  • Body Height:

    3.7 mm

  • Body Length or Diameter:

    11.6 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@6VDC

  • Contact Function:

    ON-OFF

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    6 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    1000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD

  • Housing Material:

    POLYPHENYLENE SULPHIDE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Solderability:

    REFLOW

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Gold (Au)

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

CFS-0400TB Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the CFS-0400TB can be found in the Nidec Copal Electronics Corporation's application note or by contacting their technical support team. It's essential to follow the recommended layout to ensure proper thermal management and to prevent electrical noise issues.
  • To ensure the reliability of the CFS-0400TB in high-temperature applications, it's crucial to follow the recommended derating curves, ensure proper thermal management, and consider the operating temperature range specified in the datasheet. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
  • The maximum allowable voltage drop across the CFS-0400TB is typically specified in the datasheet. However, it's essential to consider the application's requirements and ensure that the voltage drop does not exceed the recommended maximum value to prevent overheating and ensure reliable operation.
  • The CFS-0400TB is designed to operate in a normal humidity environment. However, if you plan to use it in a high-humidity environment, you should consider applying a conformal coating or using a moisture-resistant package to prevent moisture ingress and ensure reliable operation.
  • The recommended storage and handling procedure for the CFS-0400TB can be found in the Nidec Copal Electronics Corporation's datasheet or application note. It's essential to follow the recommended procedures to prevent damage and ensure the component's reliability.
