CFWLA455KJFA-B0 - Murata Electronics

Description: Signal Conditioning 455Khz 2K OHM IMP Filter

Download CFWLA455KJFA-B0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

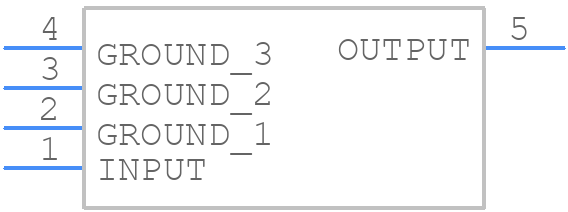

CFWLA455KJFA-B0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
CFWLA455KJFA-B0 - Murata Electronics PCB footprint - Other - Other - CFWLA455KJFA-B0-2
click to zoom
3D Models
CFWLA455KJFA-B0 - Murata Electronics - 3D model - Other - CFWLA455KJFA-B0-2
click to zoom

CFWLA455KJFA-B0 Details

  • Manufacturer Part Number:

    CFWLA455KJFA-B0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CERAMIC PACKAGE-5

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    6 ELEMENTS

  • Center or Cutoff Frequency (fo/fc):

    0.455 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    7.5 mm

  • Input/Output Impedance:

    2000 OHM

  • Insertion Loss-Max:

    7 dB

  • Length:

    11 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Width:

    7 mm

CFWLA455KJFA-B0 Frequently Asked Questions (FAQs)

  • The recommended land pattern can be found in the Murata Land Pattern document, which provides detailed guidelines for PCB design and layout.
  • Murata provides thermal resistance values in the datasheet. Ensure proper thermal management by following the recommended PCB design and layout guidelines, and consider using thermal vias or heat sinks if necessary.
  • The maximum operating temperature range is -40°C to +125°C, as specified in the datasheet. Ensure your design operates within this range to ensure component reliability.
  • While the component is designed to withstand some vibration, it's essential to evaluate the specific vibration requirements of your application. Consult with Murata or a qualified engineer to determine the component's suitability for your use case.
  • Follow the recommended storage and handling guidelines, and consider using conformal coating or other environmental protection methods to prevent moisture ingress. Consult the datasheet and Murata's reliability guidelines for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CFWLA455KJFA-B0 Overview

Use the download button to access the CFWLA455KJFA-B0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFWLA, or try a keyword search, such as Ceramic Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
