- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CGH40006S
- Part Number CGH40006S
- Manufacturer MACOM
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 6-VDFN blootliggende pad
- Released Date Sep 29, 2025
- Last Modified Date Sep 29, 2025 3:28 PM UTC
- Pinout / Pin List Click Here (Member Only)
CGH40006S Details
-
Manufacturer Part Number:
CGH40006S
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
MACOM
-
YTEOL:
7
CGH40006S Frequently Asked Questions (FAQs)
-
MACOM recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal via to dissipate heat. A good thermal management is crucial to maintain the device's junction temperature below 150°C.
-
MACOM provides a set of recommended input and output matching networks in the application note. However, the optimal matching network may vary depending on the specific application and frequency band. Engineers can use simulation tools like ADS or AWR to optimize the matching networks for their specific use case.
-
The maximum safe operating area (SOA) for the CGH40006S is not explicitly stated in the datasheet. However, MACOM recommends operating the device within the specified voltage and current limits to avoid damage. Engineers can contact MACOM's technical support for more information on SOA and how to determine it for their specific application.
-
To prevent oscillation and instability, engineers should ensure that the amplifier circuit is properly biased and matched, and that the input and output impedances are well-defined. Additionally, adding resistive feedback or using a stability network can help to prevent oscillation. MACOM also recommends following the recommended application circuit and layout guidelines.
-
The typical noise figure and phase noise performance of the CGH40006S are not specified in the datasheet. However, MACOM provides a set of typical performance curves in the application note, which can be used as a reference. Engineers can also contact MACOM's technical support for more information on noise figure and phase noise performance.
Trust Checks
Community Provided
System Verified
Community Approved
CGH40006S Overview

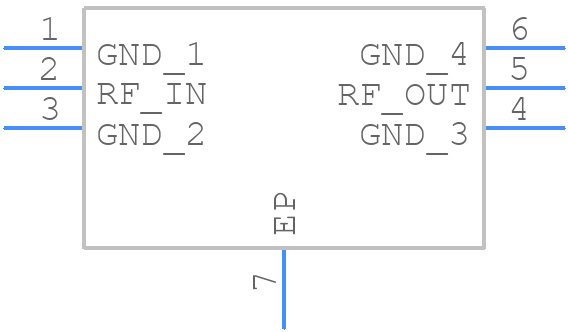

Use the download button to access the CGH40006S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CGH40,
or try a keyword search, such as RF Power Field-Effect Transistors
