A good thermal management strategy is crucial for the CGH40006S. A recommended PCB layout includes a thermal pad on the bottom of the package, connected to a large copper area on the PCB. This helps to dissipate heat efficiently. Additionally, using a thermal interface material (TIM) between the device and the heat sink can improve thermal performance.
To prevent oscillation, ensure that the CGH40006S is operated within its stable region. This can be achieved by using a proper output matching network, ensuring a good 50-ohm termination, and using a sufficient amount of decoupling capacitors. Additionally, consider using a stability-enhancing network, such as a resistive feedback loop, to improve stability.
The recommended drive level for the CGH40006S is around 20-25 dBm. For impedance matching, a good starting point is to use a 50-ohm system impedance. However, the optimal impedance match will depend on the specific application and frequency of operation. It's recommended to use load-pull analysis or electromagnetic simulation tools to determine the optimal impedance match for your specific design.
To protect the CGH40006S from ESD, use proper handling and storage procedures, such as using an ESD wrist strap or mat. For overvoltage protection, consider using a voltage limiter or a surge protection device. Additionally, ensure that the device is operated within its recommended voltage and current ratings to prevent damage.
The CGH40006S has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to derate the device's power handling capability based on the ambient temperature and the thermal resistance of the system. A good rule of thumb is to derate the power handling by 1-2% per degree Celsius above 25°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CGH40006S Overview

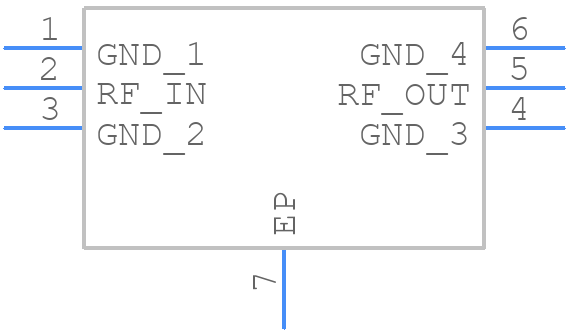

Use the download button to access the CGH40006S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CGH40,
or try a keyword search, such as RF Power Field-Effect Transistors
