MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
MACOM provides a reference design and application notes for input and output matching networks. Engineers can use simulation tools like ADS or Genesys to optimize the matching networks for their specific application.
The maximum safe operating temperature for the CGHV1F006S is 150°C. However, MACOM recommends operating the device at a temperature below 120°C for optimal reliability and performance.
To prevent oscillation and instability, engineers should ensure that the amplifier circuit is properly biased, and the input and output matching networks are optimized. Additionally, a stability analysis using simulation tools can help identify potential issues.
MACOM recommends a voltage-controlled biasing scheme, where the gate voltage is controlled to maintain a constant current. The recommended bias voltage and current are specified in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CGHV1F006S Overview

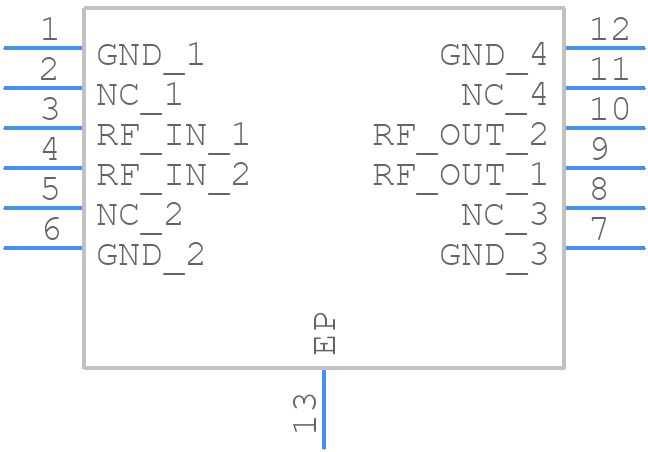

Use the download button to access the CGHV1F006S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CGHV1,
or try a keyword search, such as RF Power Field-Effect Transistors
