The recommended PCB layout and thermal management for optimal performance would involve placing the DC-DC converter near the input capacitors, using a solid ground plane, and ensuring good airflow around the device. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material to dissipate heat efficiently.
To ensure EMC and reduce EMI, it is recommended to use a shielded enclosure, keep the input and output cables as short as possible, and use EMI filters or common-mode chokes on the input and output lines. Additionally, the PCB layout should be designed to minimize loop areas and keep sensitive components away from the DC-DC converter.
The maximum allowable capacitance on the output of the DC-DC converter is not specified in the datasheet, but as a general rule, it is recommended to keep the output capacitance below 10uF to avoid stability issues and ensure proper operation.
Yes, the CHB200W-24S05 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including the input and output connections, synchronization, and fault detection. It is recommended to consult with Cincon Electronics Corporation or a qualified engineer for guidance on implementing such a configuration.
The typical start-up time and settling time of the DC-DC converter are not specified in the datasheet, but they are typically in the range of 10-50ms and 50-100ms, respectively. However, these times can vary depending on the specific application, input voltage, and output load.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB200W-24S05 Overview

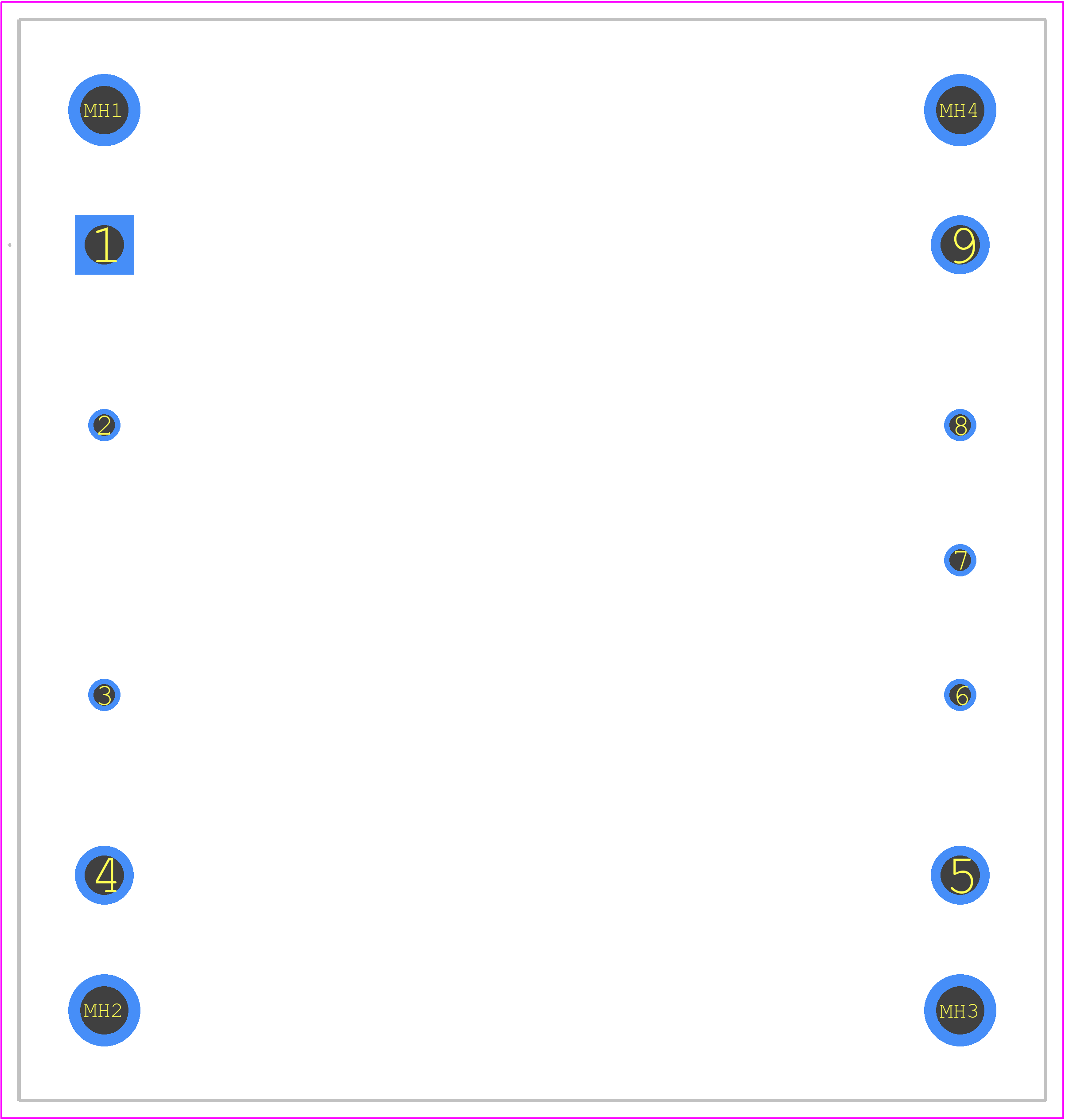

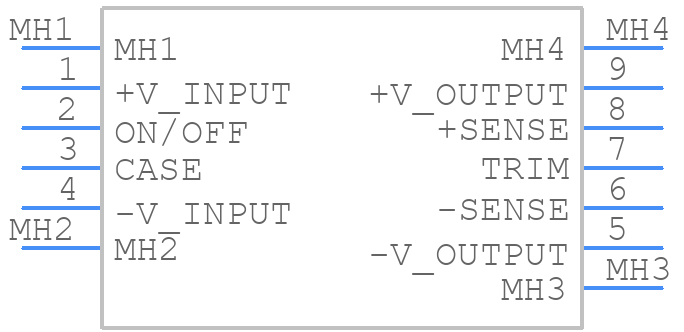

Use the download button to access the CHB200W-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB20,
or try a keyword search, such as Power Supply Modules
