OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.042 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
300 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.035 s
Width:
57.9 mm
CHB300W-110S24 Frequently Asked Questions (FAQs)
The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable and efficient power transmission, it is recommended to use a well-designed power transmission path with minimal impedance and inductance. The power transmission path should be as short as possible, and the use of twisted pairs or shielded cables can help to reduce electromagnetic interference (EMI).
When handling and installing the CHB300W-110S24 module, it is essential to follow proper safety precautions to avoid electrical shock, injury, or damage to the module. This includes wearing protective gear such as gloves and safety glasses, ensuring the module is turned off before installation, and avoiding touching electrical components or terminals.
The CHB300W-110S24 module is designed to meet standard industrial vibration and shock requirements. However, if the module will be used in an environment with extreme vibration or shock, additional mechanical support and fixation may be necessary to ensure reliable operation. It is recommended to consult with Cincon Electronics Corporation or a qualified mechanical engineer for specific guidance.
To troubleshoot common issues with the CHB300W-110S24 module, it is recommended to follow a systematic approach, starting with a visual inspection of the module and its surroundings. Check for signs of overheating, such as burn marks or discoloration, and verify that the input voltage and current are within the specified range. Use a multimeter to measure the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB300W-110S24 Overview

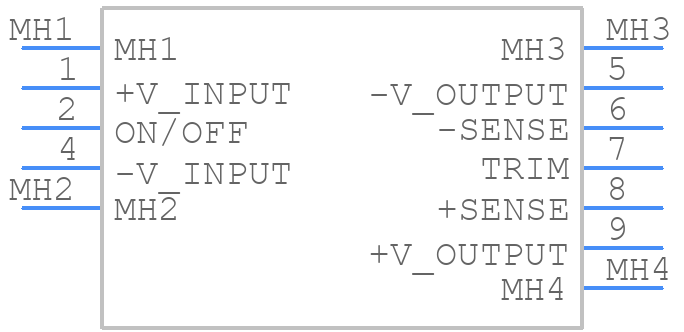

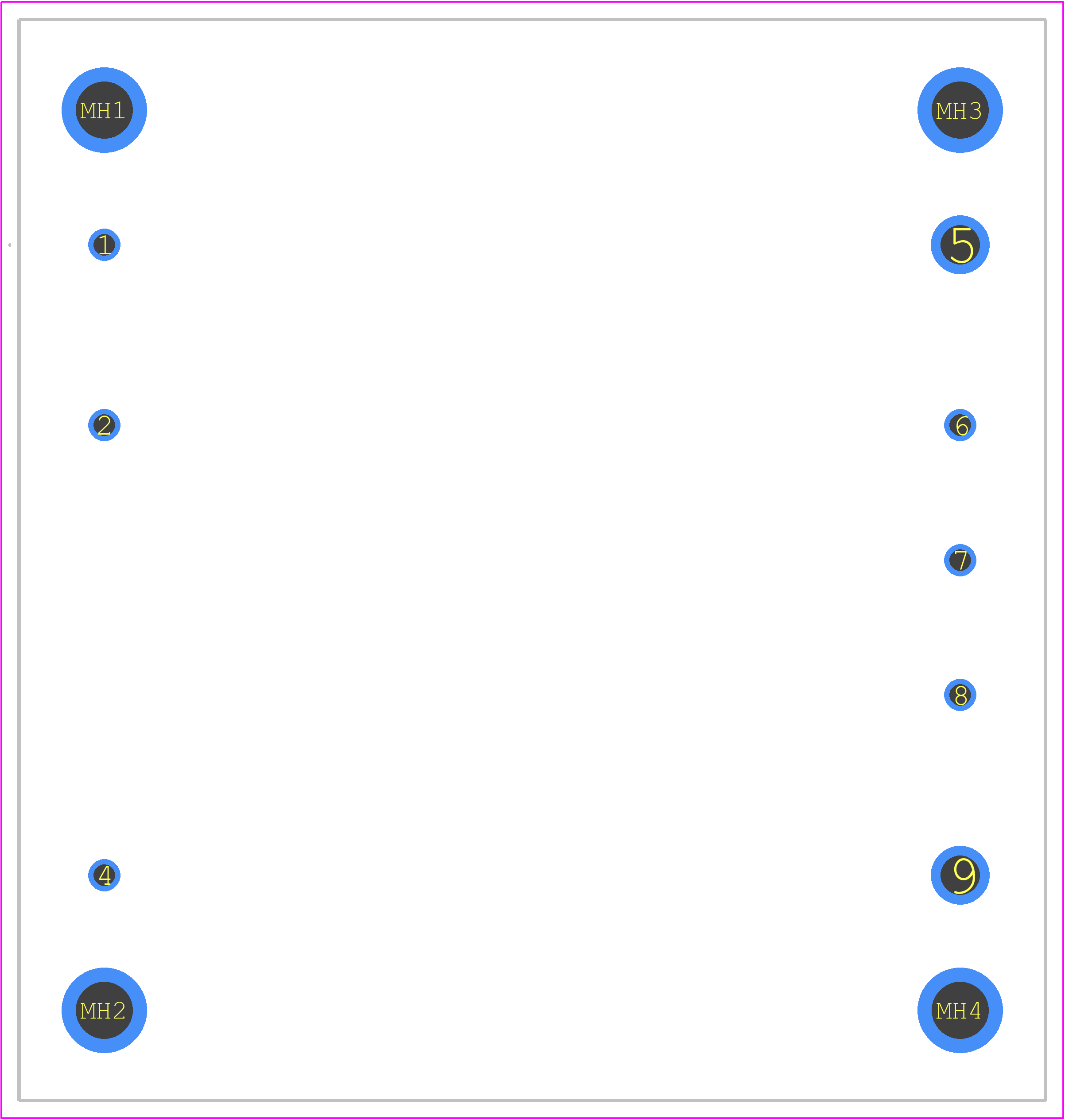

Use the download button to access the CHB300W-110S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB30,
or try a keyword search, such as Power Supply Modules
