The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a thermal vias or a heat sink, and ensuring good airflow around the component. Additionally, the PCB should be designed to minimize thermal resistance and maximize heat dissipation.
To ensure reliable start-up and shutdown of the converter, it is recommended to follow the recommended start-up and shutdown sequences outlined in the datasheet, and to ensure that the input voltage and current are within the specified ranges.
Operating the converter outside of the recommended temperature range can lead to reduced efficiency, reliability, and lifespan. It may also cause the converter to malfunction or fail. It is recommended to operate the converter within the specified temperature range to ensure optimal performance and reliability.
To troubleshoot common issues with the converter, it is recommended to follow a systematic approach, starting with checking the input voltage and current, then verifying the output voltage and current, and finally checking the thermal performance. The datasheet and application notes can provide guidance on troubleshooting specific issues.
The converter is designed to meet EMI and EMC standards, but it is still important to consider EMI and EMC in the system design. This includes using proper shielding, filtering, and grounding, and ensuring that the converter is operated within the specified frequency range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB350-24S24 Overview

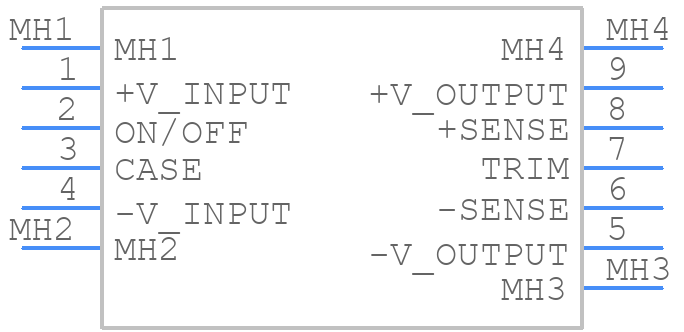

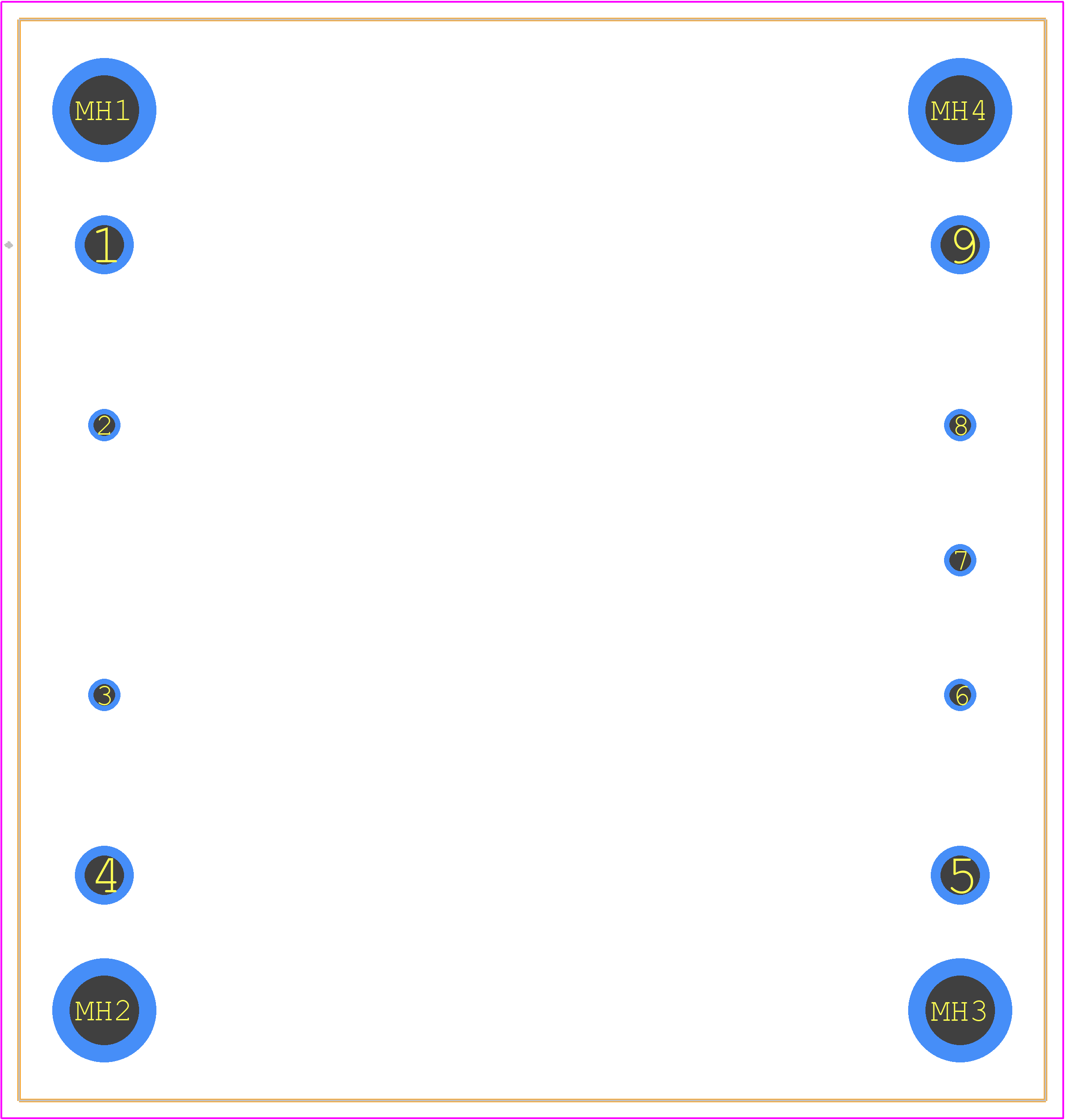

Use the download button to access the CHB350-24S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB35,
or try a keyword search, such as Power Supply Modules
