CHB50-24S15 - Cincon

Description: Isolated DC/DC Converters - Through Hole DC-DC Converter, 25 to 50 Watt, Wide Input Range, Single Output, 18-36VDC Input, 15VDC Output

Download CHB50-24S15 Model

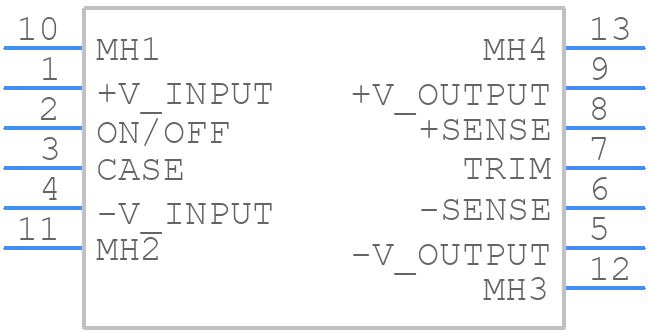

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

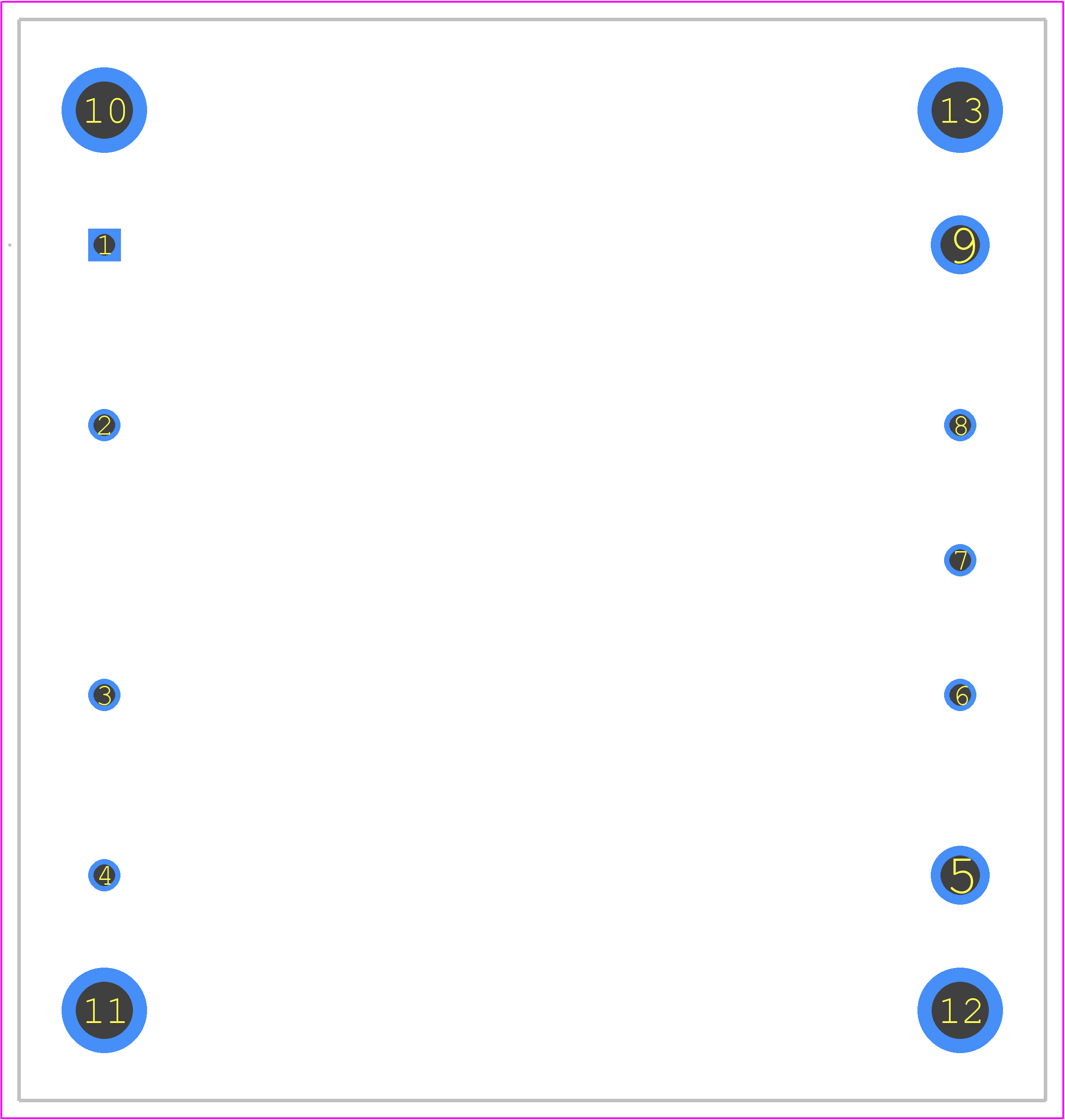

PCB Footprints
CHB50-24S15 - Cincon PCB footprint - Other - Other - CHB50-24S15-1
click to zoom
3D Models
CHB50-24S15 - Cincon  - 3D model - Other - CHB50-24S15-1
click to zoom

CHB50-24S15 Details

  • Manufacturer Part Number:

    CHB50-24S15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    MODULE,9LEAD,1.9

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Total Power Output-Max:

    49.95 W

CHB50-24S15 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge or a heat sink, and ensuring good airflow around the component. Additionally, the PCB should have a solid ground plane and a separate layer for the power plane to reduce electromagnetic interference (EMI).
  • To ensure reliable start-up and shutdown of the converter, it is recommended to add a soft-start circuit to limit the inrush current during start-up, and to use a voltage supervisor or a power-on reset circuit to ensure that the converter starts up and shuts down cleanly.
  • The maximum capacitance on the output of the converter depends on the specific application and the desired output voltage ripple. As a general rule, the output capacitance should be limited to 10-20 times the output capacitance recommended in the datasheet to avoid affecting the stability of the converter.
  • Yes, the CHB50-24S15 is designed to meet the requirements of high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is built with high-quality components to ensure long-term reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the reliability and availability of the overall system.
  • To troubleshoot common issues with the CHB50-24S15, it is recommended to follow a systematic approach, starting with a visual inspection of the PCB and the component, followed by measurement of the input and output voltages, currents, and temperatures. The datasheet and application notes provided by Cincon Electronics Corporation can also be consulted for troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CHB50-24S15 Overview

Use the download button to access the CHB50-24S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB50, or try a keyword search, such as Power Supply Modules
