- Part Number CHB50W-24S48
- Manufacturer Cincon
- Pin Count 13
- Part Category Power Supply
- Package Category Other

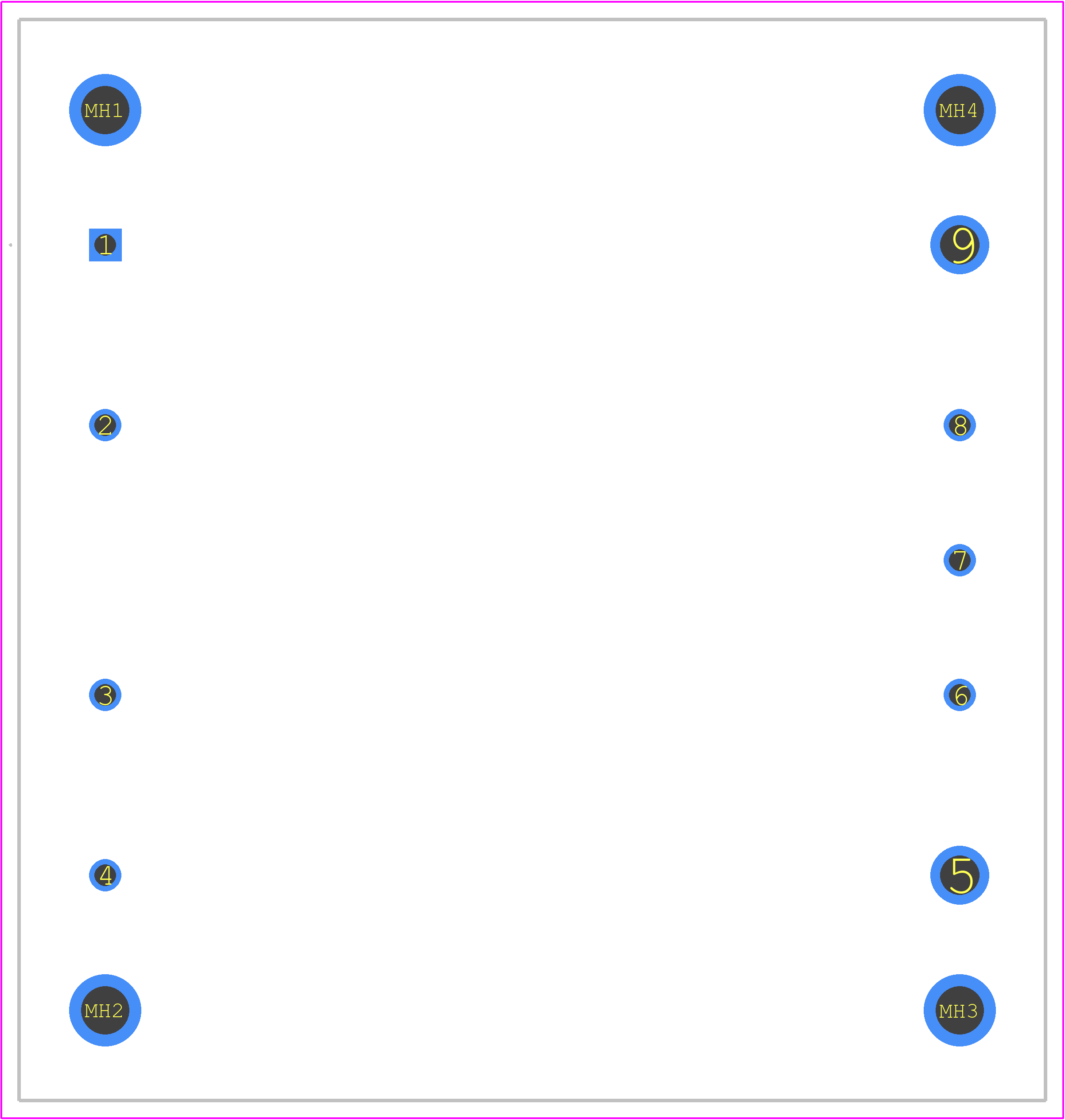

- Footprint Name Other - CHB50W-24S48-2
- Released Date Jul 16, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CHB50W-24S48 Details
-
Manufacturer Part Number:
CHB50W-24S48
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
1/2 BRICK PACKAGE-9
-
ECCN Code:
EAR99
-
Manufacturer:
Cincon Electronics Corporation
-
YTEOL:
7
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
-
Approvals:
CE, EN, IEC, UL
-
Efficiency (Main Output):
83%
-
Input Voltage-Max:
36 V
CHB50W-24S48 Frequently Asked Questions (FAQs)
-
The recommended PCB layout for optimal thermal performance involves placing the DC/DC converter near a metal edge or a heat sink, and ensuring good airflow around the component. Additionally, using thermal vias and a solid ground plane can help to dissipate heat efficiently.
-
To ensure reliable start-up and operation with a high-capacitance output filter, it is recommended to add a soft-start circuit or a ramp-up circuit to limit the inrush current during start-up. Additionally, selecting the right output capacitor with low ESR and high ripple current rating can help to minimize voltage overshoot and oscillation.
-
The maximum allowable output voltage deviation for the CHB50W-24S48 is ±10% of the nominal output voltage, which is 48V. This means that the output voltage can deviate by up to 4.8V (48V x 0.1) without affecting the performance or reliability of the converter.
-
Yes, the CHB50W-24S48 can be used in a redundant or parallel configuration to achieve higher power output or to provide redundancy in critical applications. However, it is recommended to consult with Cincon Electronics Corporation or a qualified engineer to ensure that the configuration is properly designed and implemented to avoid any potential issues or conflicts.
-
The typical efficiency of the CHB50W-24S48 varies depending on the load. At full load (50W), the efficiency is typically around 85-90%. At half load (25W), the efficiency is typically around 88-92%. At low load (10W), the efficiency is typically around 80-85%. Please refer to the datasheet or consult with Cincon Electronics Corporation for more detailed information.
Trust Checks
Community Provided
System Verified
Community Approved
CHB50W-24S48 Overview

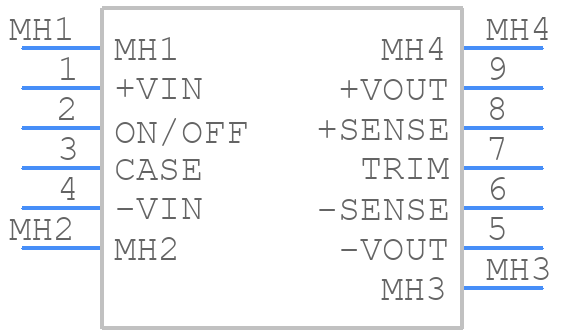

Use the download button to access the CHB50W-24S48 schematic symbol, PCB footprint, and 3D model.
