The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A thermal pad on the bottom of the device can be connected to a copper plane on the PCB to dissipate heat. Additionally, a gap of at least 1mm between the device and other components is recommended to prevent thermal coupling.
To ensure reliability and long-term stability, it's essential to follow the recommended operating conditions, such as input voltage, output voltage, and ambient temperature. Additionally, proper PCB design, component selection, and soldering techniques are crucial. Regular cleaning and maintenance of the converter can also help prevent failures.
Output voltage deviation or instability can be caused by various factors, including input voltage fluctuations, temperature changes, component tolerances, and PCB layout issues. Other possible causes include incorrect output voltage setting, inadequate decoupling, or electromagnetic interference (EMI).
To troubleshoot and debug issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component connections for any errors or damage. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
When working with the CHB75-12S15, ensure proper handling and storage to prevent damage. Avoid touching the device's pins or components to prevent electrostatic discharge (ESD). Use proper safety equipment, such as safety glasses and an anti-static wrist strap, when handling the device. Follow proper soldering and desoldering techniques to prevent damage to the device or PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB75-12S15 Overview

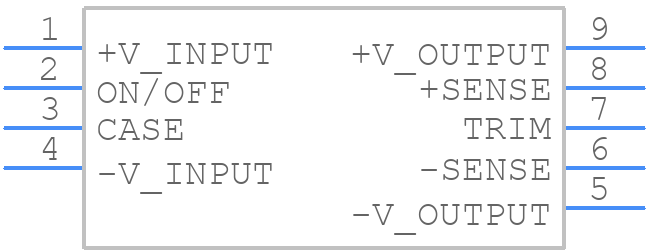

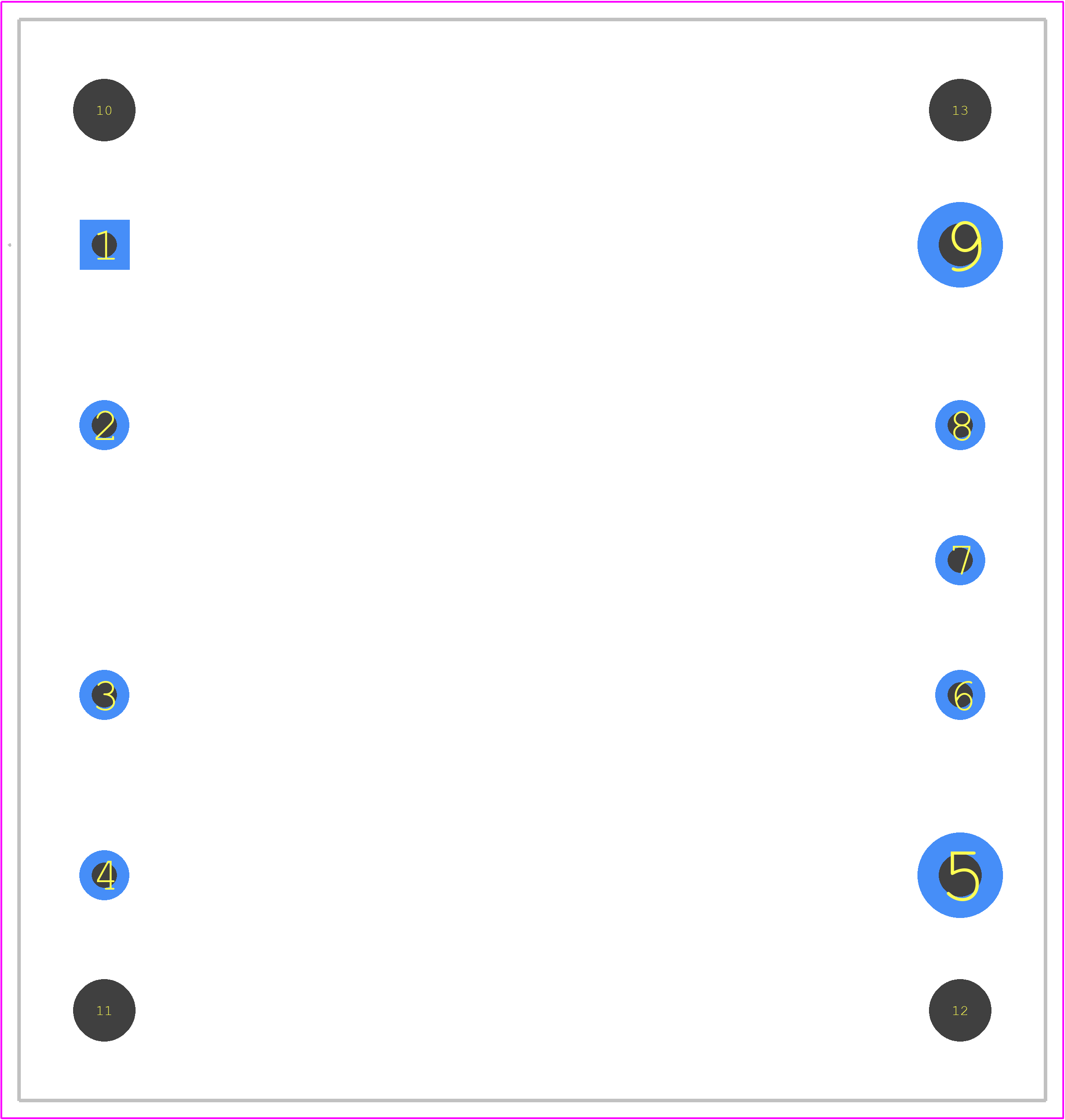

Use the download button to access the CHB75-12S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB75,
or try a keyword search, such as Power Supply Modules
