The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K should be used between the module and the heat sink.
To ensure reliability and longevity, it's essential to operate the module within the recommended temperature range (–40°C to +85°C). Additionally, consider using a heat sink, thermal interface material, and a cooling system to maintain a safe operating temperature. Regular cleaning and maintenance of the module and its surroundings can also help to prevent overheating and reduce the risk of failure.
The input connector is typically a 3-pin or 4-pin terminal block with a pitch of 3.5 mm or 5 mm, while the output connector is usually a 2-pin or 3-pin terminal block with a pitch of 3.5 mm or 5 mm. The connectors are rated for a maximum current of 12 A and a maximum voltage of 24 V. It's essential to ensure that the connectors are securely fastened and meet the recommended torque specifications to prevent damage or electrical shock.
Yes, the CHB75-24S12 can be used in a redundant or parallel configuration to achieve higher power outputs. However, it's crucial to ensure that the modules are properly synchronized and configured to prevent oscillations, instability, or damage. Consult with Cincon Electronics Corporation or a qualified engineer to design and implement a reliable and efficient redundant or parallel configuration.
The CHB75-24S12 module is designed to meet the EMI and EMC requirements of various international standards, including EN 55022, EN 55024, and FCC Part 15. However, it's essential to ensure that the module is properly shielded, filtered, and grounded to prevent electromagnetic interference and radiation. Additionally, the module should be installed in a metal enclosure with adequate shielding and filtering to meet the specific EMI and EMC requirements of the application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB75-24S12 Overview

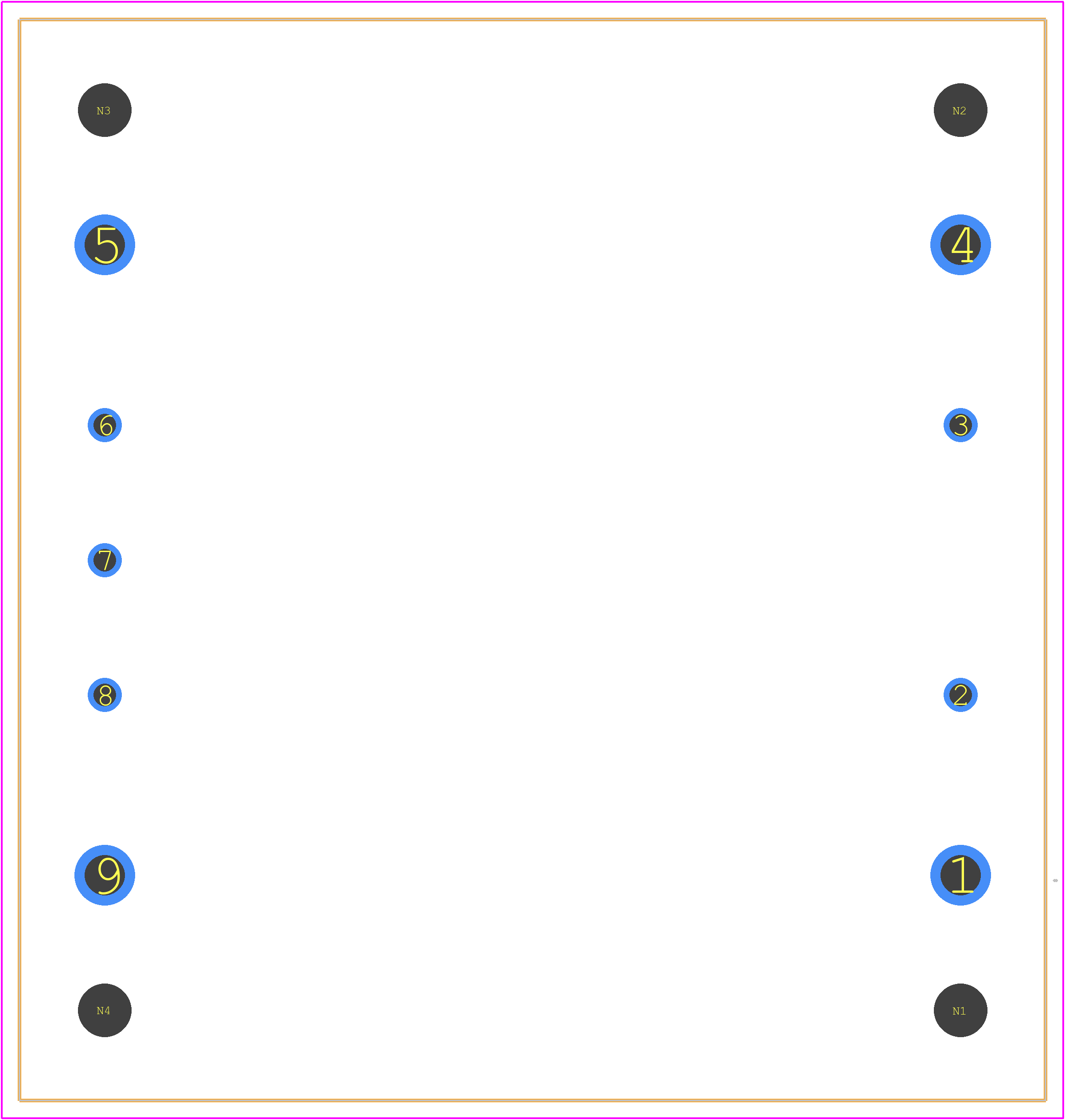

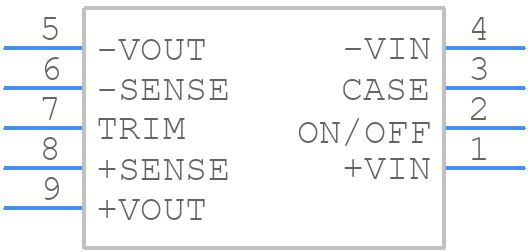

Use the download button to access the CHB75-24S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB75,
or try a keyword search, such as Power Supply Modules
