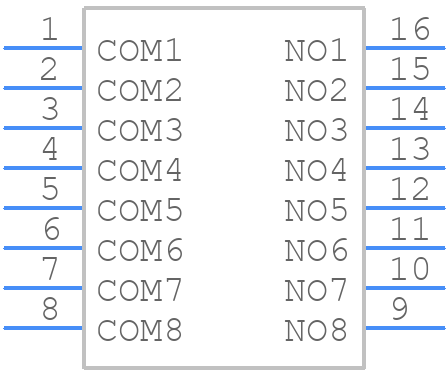

CHS-08B1 - Nidec Copal

CHS-08B1 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer of the PCB, connected to the thermal pad of the CHS-08B1. This will help to dissipate heat efficiently.
• How do I ensure reliable soldering of the CHS-08B1?
  To ensure reliable soldering, it is recommended to use a soldering iron with a temperature of 250°C to 270°C, and to apply a small amount of solder paste to the pads. It is also important to follow the recommended soldering profile and to avoid overheating the component.
• What is the maximum operating temperature range for the CHS-08B1?
  The maximum operating temperature range for the CHS-08B1 is -40°C to 125°C. However, it is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
• How do I handle the CHS-08B1 during assembly to prevent damage?
  To prevent damage, it is recommended to handle the CHS-08B1 by the edges, avoiding touching the pins or the thermal pad. It is also important to use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
• What is the recommended storage condition for the CHS-08B1?
  The recommended storage condition for the CHS-08B1 is in a dry, cool place, away from direct sunlight and moisture. The component should be stored in its original packaging or in a sealed bag to prevent moisture absorption.
