CHS1202405 - Cosel

Description: Isolated DC/DC Converters - Through Hole 120W 18-36Vin 5Vout 24A DIP IBC

Download CHS1202405 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

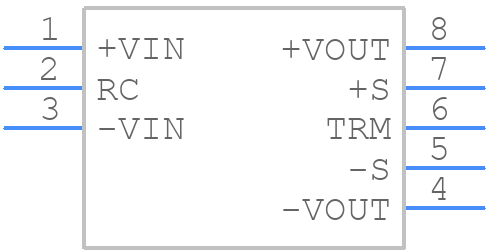

CHS1202405 - Cosel - PCB symbol
click to zoom
PCB Footprints

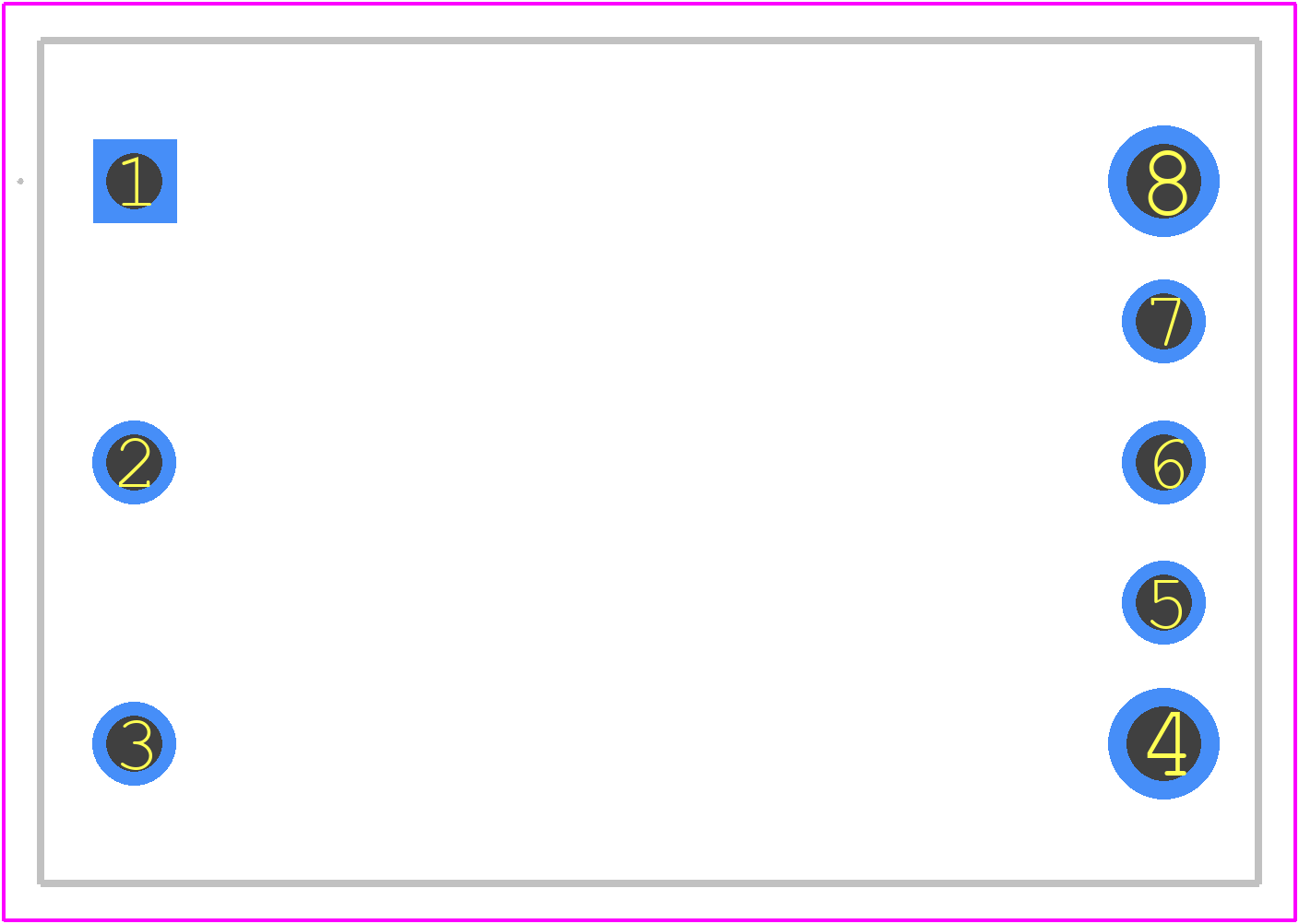

CHS1202405 - Cosel PCB footprint - Other - Other - CHS1202405-4
click to zoom
3D Models
CHS1202405 - Cosel - 3D model - Other - CHS1202405-4
click to zoom

CHS1202405 Details

  • Manufacturer Part Number:

    CHS1202405

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    33 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.86 mm

CHS1202405 Frequently Asked Questions (FAQs)

  • Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow with nearby components.
  • Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding to minimize radiation. Consult the Cosel application note for EMC guidelines.
  • The maximum capacitance load is 2200uF. Exceeding this value may cause instability or oscillation. Ensure the output capacitance is within the recommended range to maintain stability and performance.
  • Yes, the CHS1202405 can be used in redundant or parallel configurations. However, consult the Cosel application note for specific guidelines on synchronization, current sharing, and fault tolerance to ensure reliable operation.
  • The derating curve is available in the Cosel application note. In general, the output power should be derated by 2.5% per degree Celsius above 50°C to ensure reliable operation.
