CHS1202415 - Cosel

Description: Isolated DC/DC Converters

Download CHS1202415 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

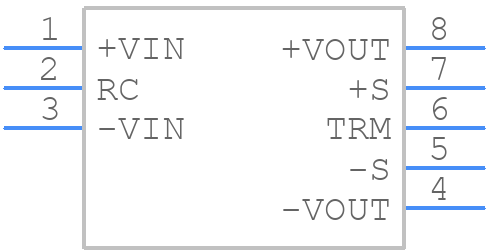

Symbol
CHS1202415 - Cosel - PCB symbol
click to zoom

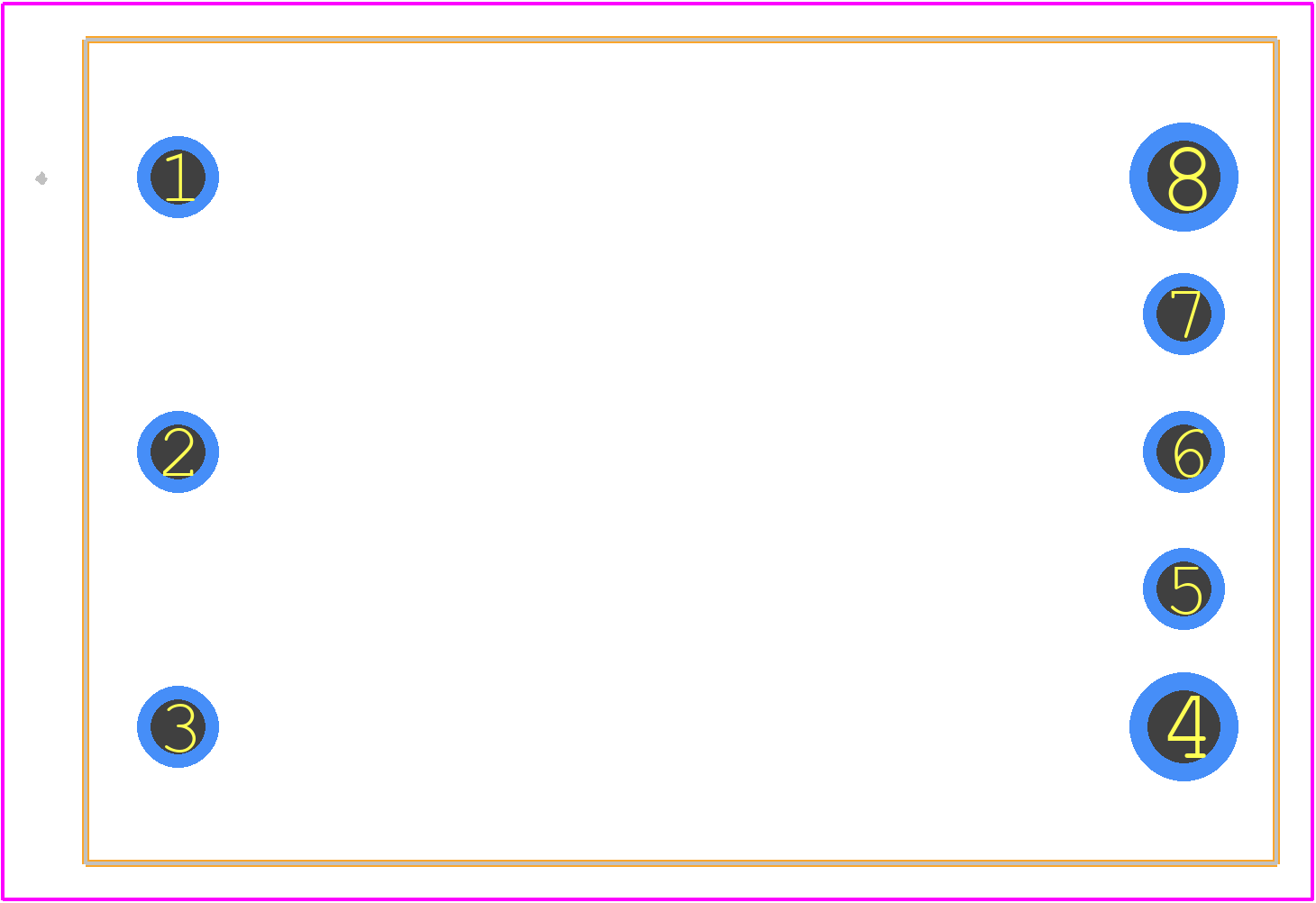

PCB Footprints
CHS1202415 - Cosel PCB footprint - Other - Other - CHS1202415-3
click to zoom
3D Models
CHS1202415 - Cosel - 3D model - Other - CHS1202415-3
click to zoom

CHS1202415 Details

  • Manufacturer Part Number:

    CHS1202415

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, C-UL, EN

  • Efficiency (Main Output):

    91%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    33 mm

  • Line Regulation-Max:

    0.0045%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE

  • Ripple Voltage (Main Out):

    0.074235 Vrms

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.05 s

  • Width:

    22.86 mm

CHS1202415 Frequently Asked Questions (FAQs)

  • Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow with nearby components.
  • Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding to minimize radiation. Ensure cables are properly routed and terminated to minimize emissions.
  • The maximum output capacitance is 220uF. Exceeding this value may cause instability or oscillations. Ensure the output capacitor is rated for the maximum output voltage and has a low ESR to minimize voltage ripple.
  • Yes, but it requires careful design and synchronization to ensure proper operation. Consult Cosel's application notes and consider consulting with a power supply expert to ensure a reliable and efficient design.
  • Cosel provides a derating curve in the datasheet, but for specific applications, consult with Cosel's technical support for customized derating guidance. Ensure proper thermal management and consider using a thermistor or thermal sensor to monitor the converter's temperature.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CHS1202415 Overview

Use the download button to access the CHS1202415 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHS12, or try a keyword search, such as Power Supply Modules
