CHS3002405-B - Cosel

Description: Cosel PCB Mount 200W Isolated DC-DC Converter, Vin 18 → 36 V dc, I/O isolation 1 kV ac, 2.25 kV dc, 500 V dc

Download CHS3002405-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

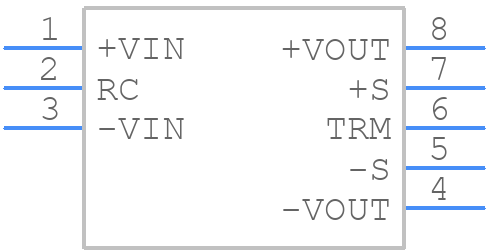

CHS3002405-B - Cosel - PCB symbol
click to zoom
PCB Footprints

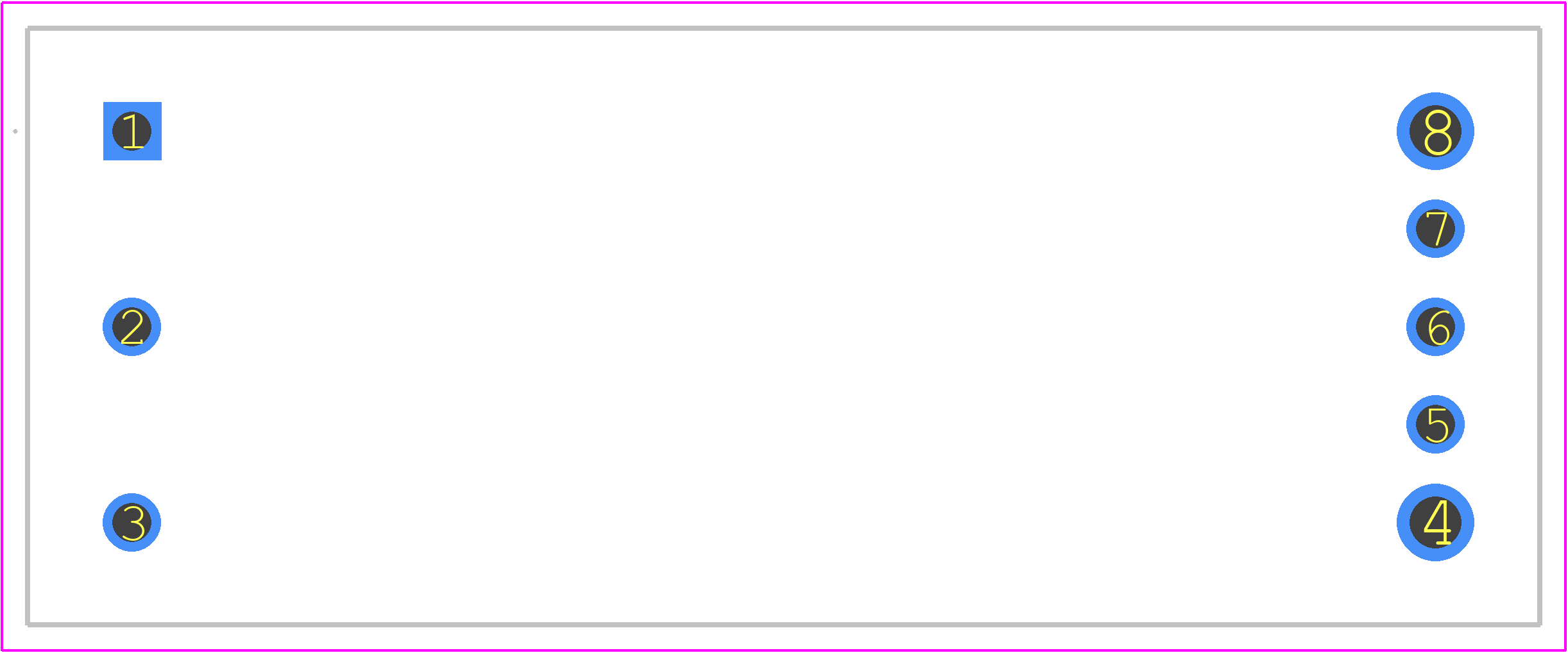

CHS3002405-B - Cosel PCB footprint - Other - Other - CHS3002405-B-2
click to zoom
3D Models
CHS3002405-B - Cosel - 3D model - Other - CHS3002405-B-2
click to zoom

CHS3002405-B Details

  • Manufacturer Part Number:

    CHS3002405-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DMA,

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-17

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    58.9 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    200 W

  • Trim/Adjustable Output:

    YES

  • Width:

    23.26 mm

CHS3002405-B Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
  • Yes, the CHS3002405-B is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage.
  • Cosel recommends an output filter capacitance of 10uF to 47uF maximum to ensure stable operation and prevent oscillation. Exceeding this value may lead to instability or reduced performance.
  • Yes, the CHS3002405-B can be used in redundant or parallel configurations to achieve higher power ratings or improve system reliability. However, it's essential to ensure proper synchronization and control to prevent damage or instability.
  • Cosel estimates the MTBF for the CHS3002405-B to be around 1.5 million hours at 40°C ambient temperature, based on MIL-HDBK-217F calculations. This value may vary depending on the specific application and operating conditions.
