Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the CHS3002412-B is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure reliability, Cosel recommends derating the output power by 2.5% per degree Celsius above 50°C. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the thermal resistance.
Cosel recommends using a fuse with a rating of 5A to 10A, depending on the specific application and input voltage. The fuse should be able to handle the module's peak inrush current and provide adequate protection against overcurrent conditions.
Yes, the CHS3002412-B can be used in redundant or parallel configurations to achieve higher power ratings or improve system reliability. However, it's essential to ensure proper synchronization and control of the modules to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHS3002412-B Overview

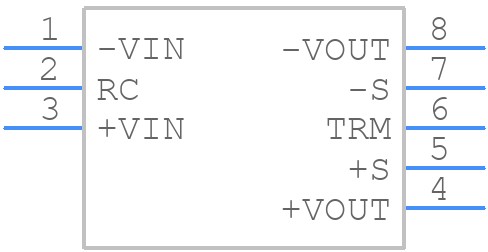

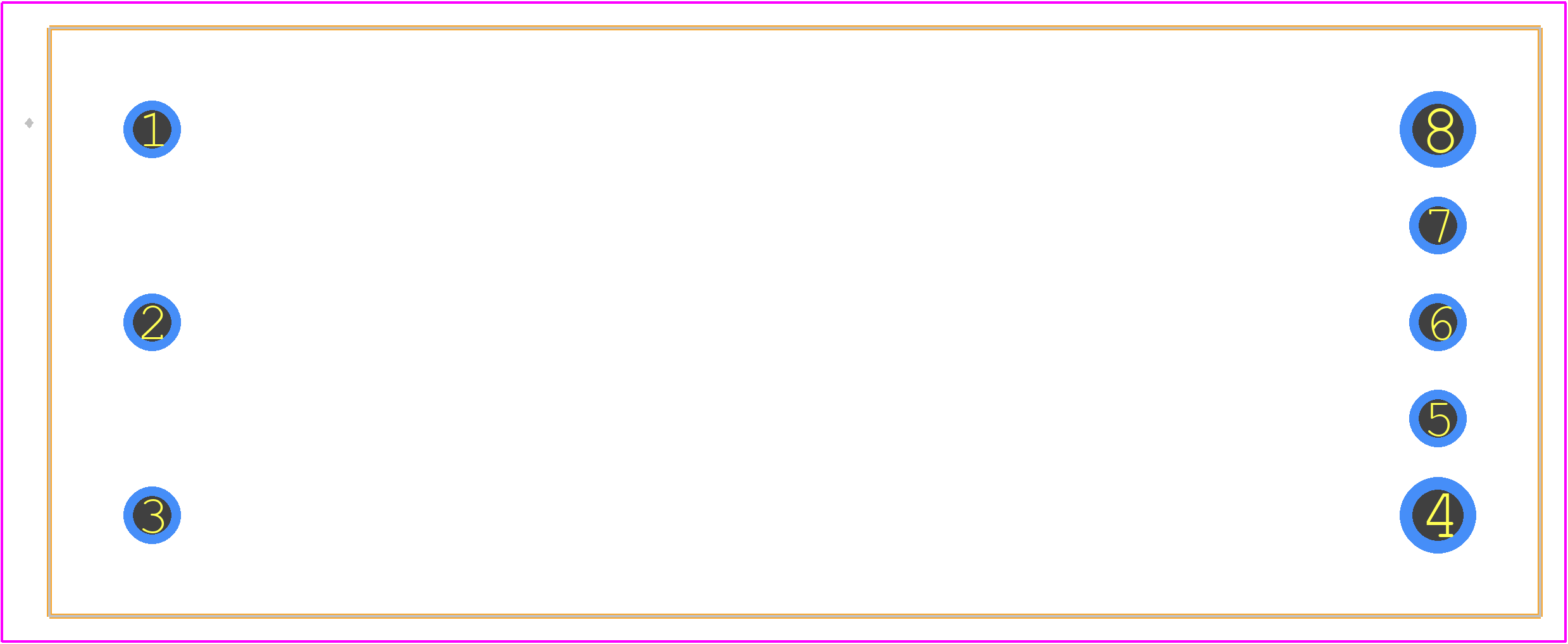

Use the download button to access the CHS3002412-B schematic symbol, PCB footprint, and 3D model.
