Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the CHS3002412 is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is rigid enough to prevent flexing or cracking. Cosel recommends following the IPC-9592 standard for vibration testing.
Cosel's CHS3002412 meets various safety and regulatory standards, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the datasheet and consult with Cosel's application engineers to ensure the module meets your specific requirements. Additionally, you may need to perform additional testing and certification for your end-product.
Cosel recommends derating the input capacitors by 50% to ensure reliable operation. This means that if the datasheet specifies a 10uF input capacitor, you should use a 5uF capacitor instead.
Yes, the CHS3002412 can be used in a redundant or N+1 configuration to achieve high availability and reliability. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHS3002412 Overview

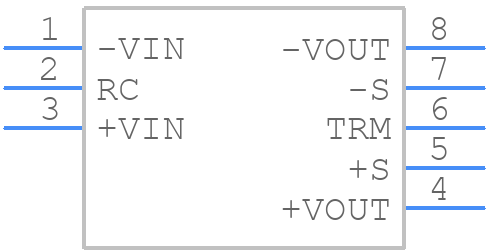

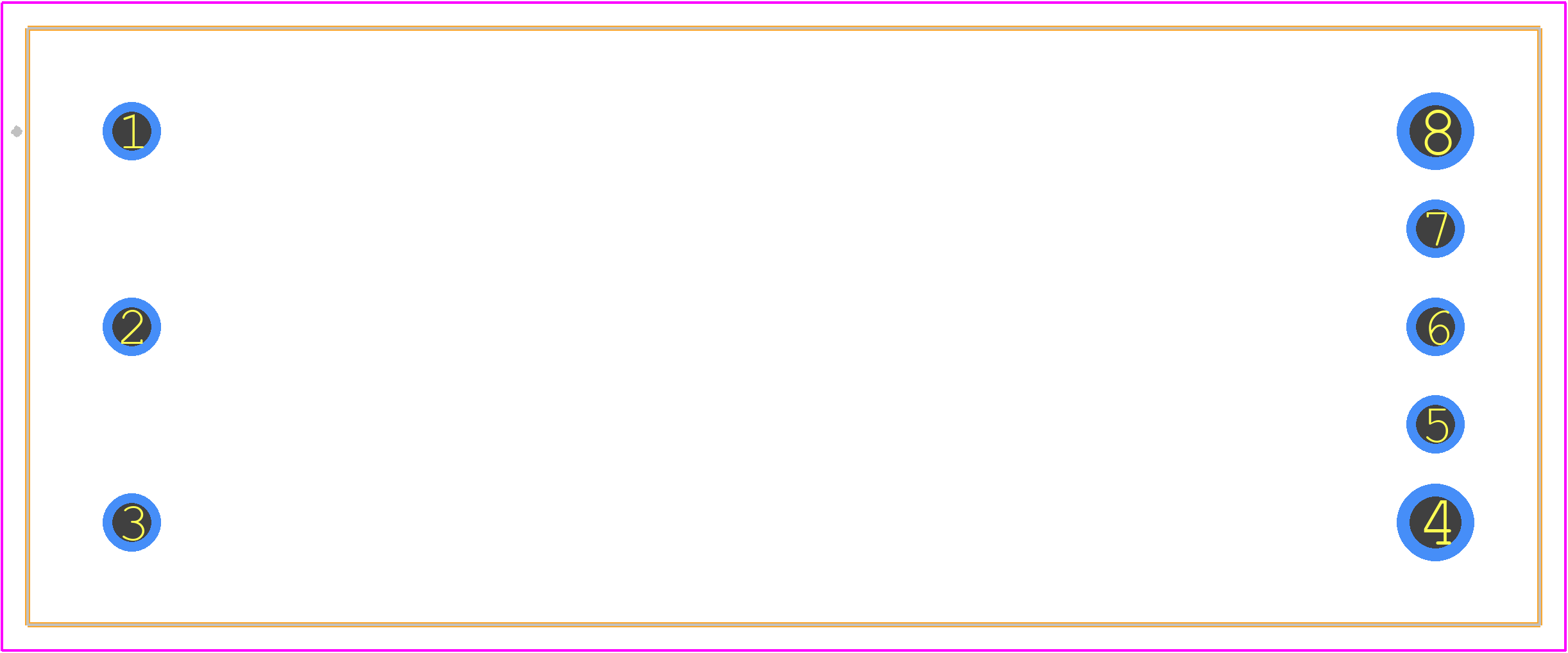

Use the download button to access the CHS3002412 schematic symbol, PCB footprint, and 3D model.
