Cosel recommends a PCB layout with a large copper area connected to the tab of the device to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended. Additionally, it's essential to keep the PCB layout symmetrical to minimize thermal gradients.
To ensure the CHS3002424 meets safety standards, follow the guidelines outlined in the datasheet and application notes. Additionally, consider factors such as input voltage, output voltage, and isolation voltage to ensure compliance with relevant safety standards like UL, EN, and IEC.
The maximum capacitance on the output of the CHS3002424 depends on the specific application and output voltage. As a general rule, Cosel recommends limiting the output capacitance to 10uF or less to avoid stability issues. However, it's essential to consult with Cosel's application engineers for specific guidance on your application.
Yes, the CHS3002424 is designed to meet the requirements of high-reliability and aerospace applications. However, it's essential to consult with Cosel's application engineers to ensure the device meets the specific requirements of your application, including any necessary screening, testing, and certification.
The typical lead time for production quantities of the CHS3002424 varies depending on the quantity, packaging, and other factors. However, Cosel typically quotes a lead time of 8-12 weeks for standard production quantities. It's essential to consult with Cosel's sales team or authorized distributors for specific lead time information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHS3002424 Overview

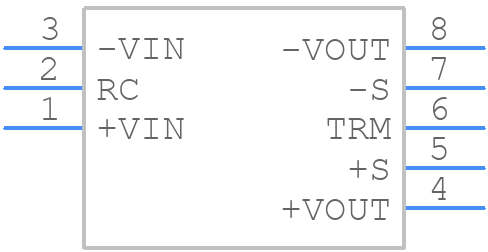

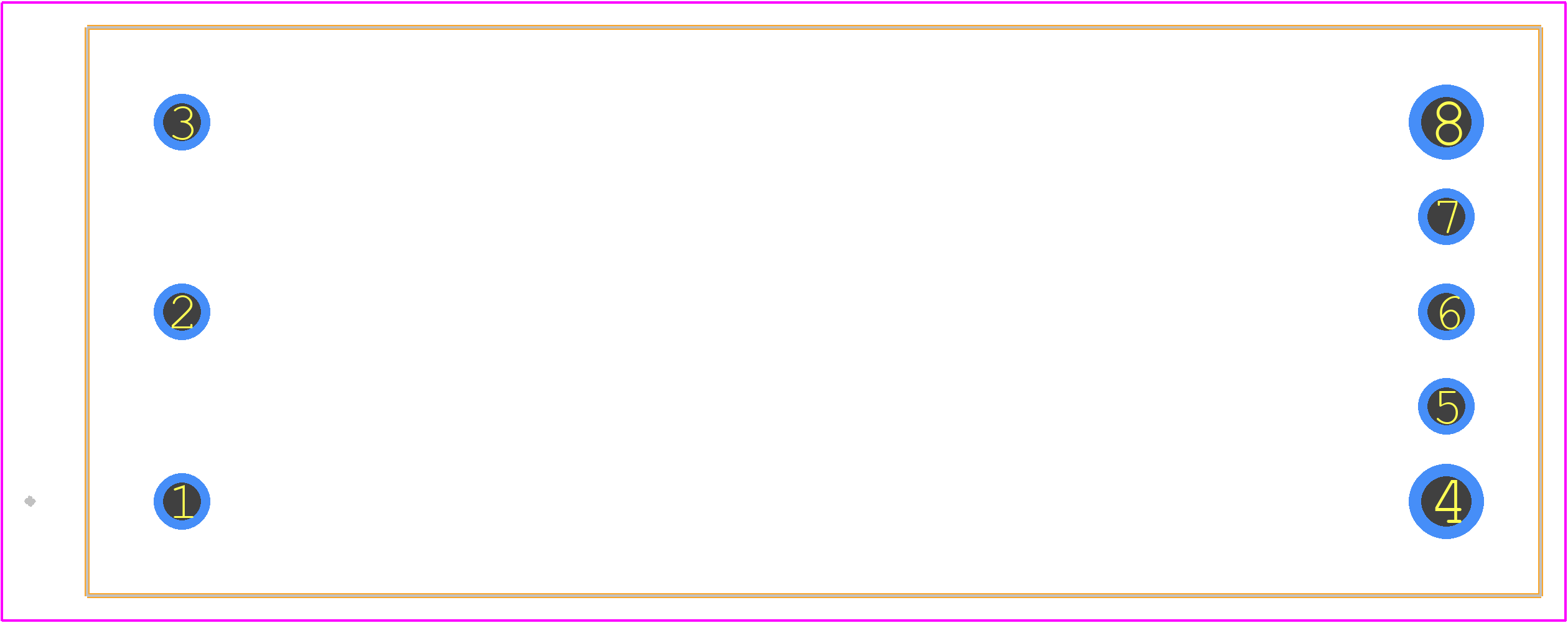

Use the download button to access the CHS3002424 schematic symbol, PCB footprint, and 3D model.
