CHS3004812 - Cosel

Description: Isolated DC/DC Converters 300W 36-76Vin 12Vout 25A Iso 1/4brick

Download CHS3004812 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

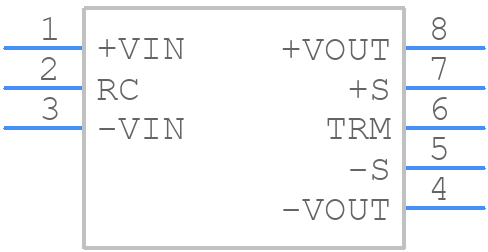

Symbol
CHS3004812 - Cosel - PCB symbol
click to zoom

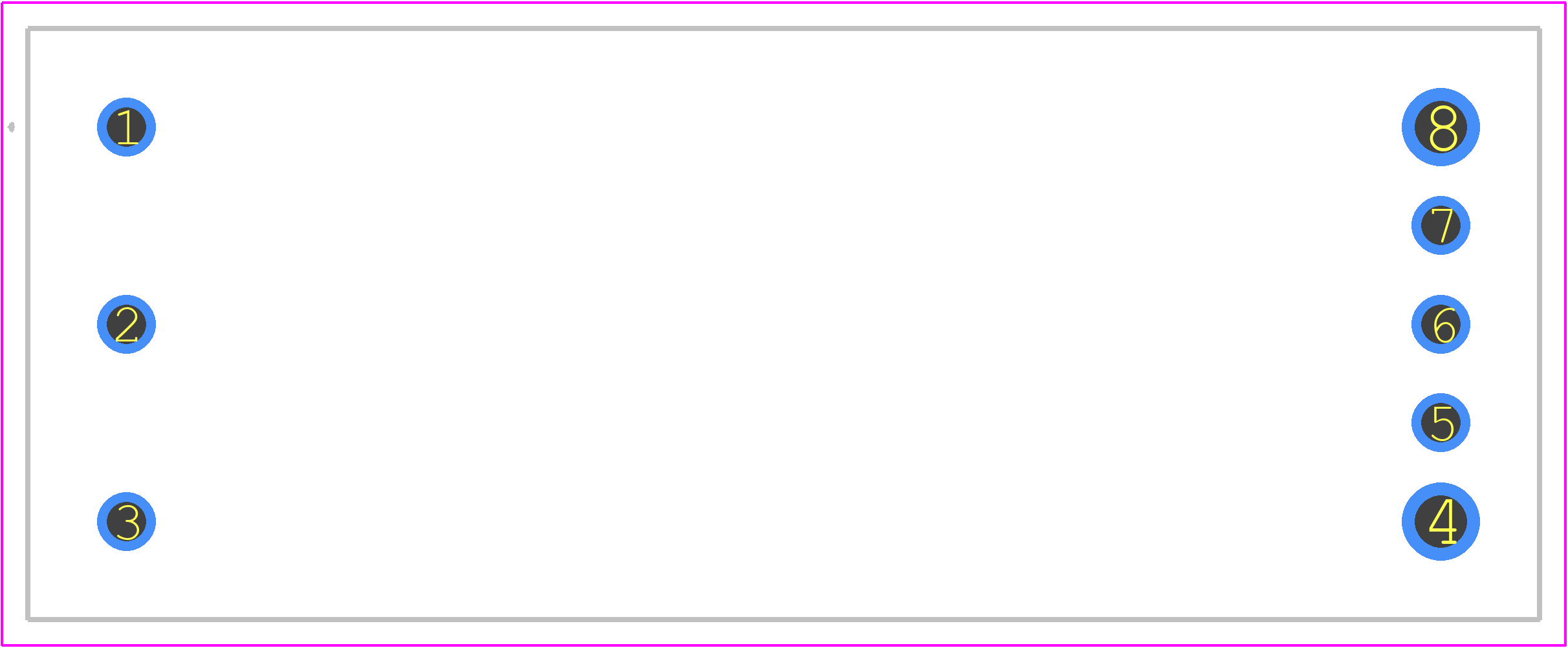

PCB Footprints
CHS3004812 - Cosel PCB footprint - Other - Other - DIP
click to zoom
3D Models
CHS3004812 - Cosel - 3D model - Other - DIP
click to zoom

CHS3004812 Details

  • Manufacturer Part Number:

    CHS3004812

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    58.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    300 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.86 mm

CHS3004812 Frequently Asked Questions (FAQs)

  • Cosel recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 1 inch x 1 inch of copper area is recommended for heat sinking.
  • Cosel recommends following the CISPR 11 and CISPR 22 standards for EMC compliance. Additionally, ensure proper grounding, shielding, and filtering to minimize electromagnetic interference.
  • Cosel recommends a maximum capacitance of 220uF for the output filter capacitors to ensure stability and prevent oscillation.
  • Yes, the CHS3004812 can be used in a redundant or N+1 configuration. However, Cosel recommends consulting with their application engineers to ensure proper implementation and to discuss specific requirements.
  • The typical lead time for the CHS3004812 is 12-14 weeks, and the minimum order quantity (MOQ) is 25 pieces. However, this may vary depending on the region and availability.
