CHS4002412 - Cosel

Description: Isolated DC/DC Converters 318W 12V 26.5A 18-36Vin TH Iso

Download CHS4002412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

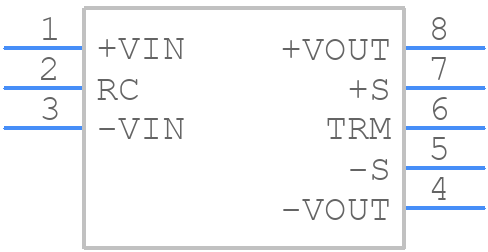

CHS4002412 - Cosel - PCB symbol
click to zoom
PCB Footprints

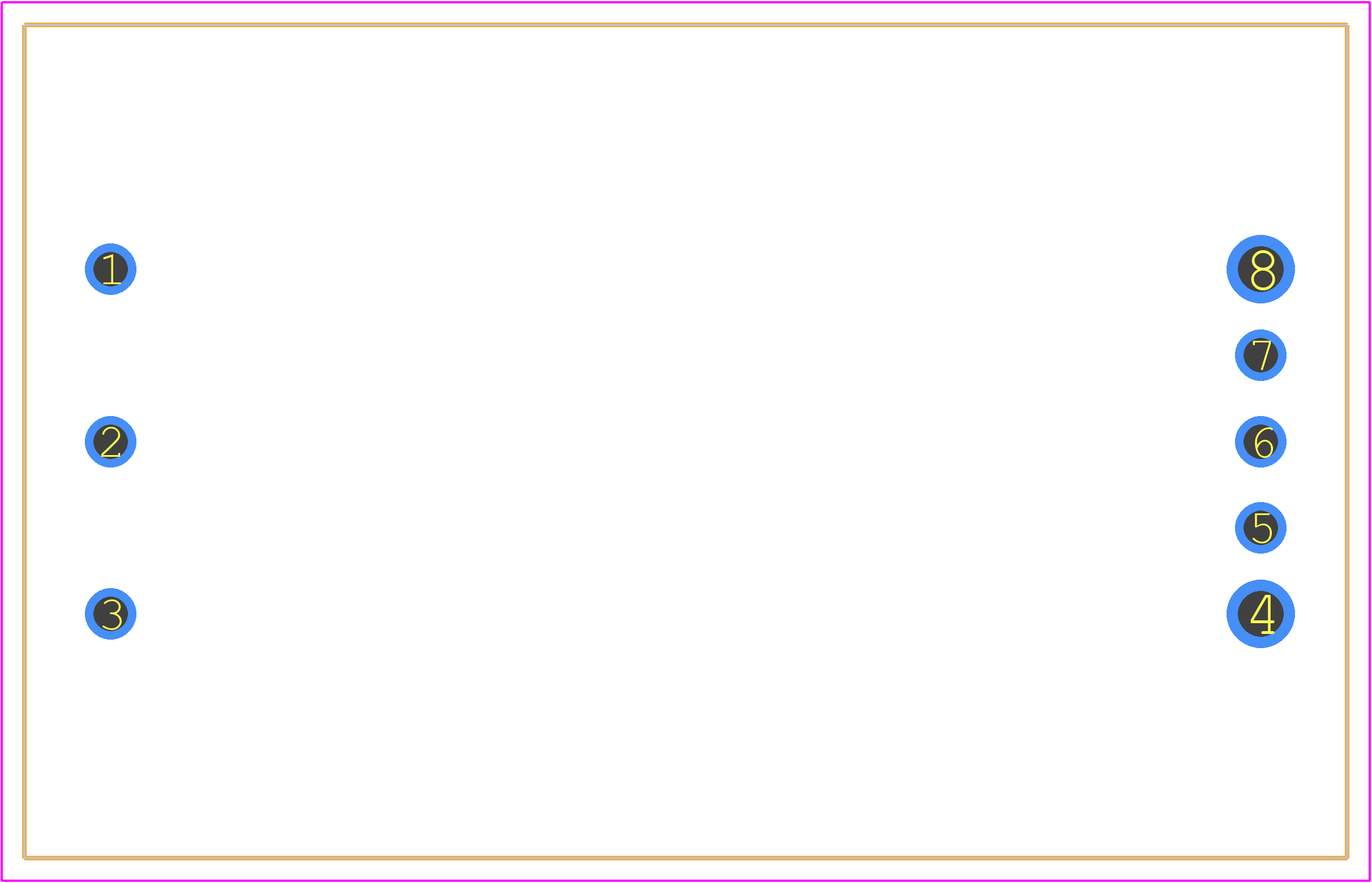

CHS4002412 - Cosel PCB footprint - Other - Other - CHS4002412-3
click to zoom
3D Models
CHS4002412 - Cosel - 3D model - Other - CHS4002412-3
click to zoom

CHS4002412 Details

  • Manufacturer Part Number:

    CHS4002412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, C-UL, EN

  • Efficiency (Main Output):

    93.5%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    58.4 mm

  • Line Regulation-Max:

    0.00288%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    26.5 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    9.6 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Seated Height-Max:

    9.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    318 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.05 s

  • Width:

    36.8 mm

CHS4002412 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • Cosel recommends consulting with their application engineers to ensure the CHS4002412 meets the specific safety and regulatory requirements of your application, such as UL, EN, or IEC standards.
  • The maximum allowable capacitance for the output filter capacitors is 1000uF, as specified in the datasheet. Exceeding this value may affect the stability of the converter.
  • Yes, the CHS4002412 is designed to withstand high-vibration and high-shock environments, but it's recommended to consult with Cosel's application engineers to ensure the converter is properly secured and mounted to meet the specific environmental requirements.
  • Cosel recommends a fuse rating of 5A to 10A, depending on the input voltage and current requirements of the application. A slow-blow fuse type is recommended to ensure the converter's inrush current is not interrupted.
