CK1051 - Lorlin

CK1051 Details

• Manufacturer Part Number:

  CK1051

• Part Life Cycle Code:

  Contact Manufacturer

• Country Of Origin:

  UK

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  Lorlin Electronics LTD

• Actuator Length:

  1.653 inch

• Actuator Type:

  SPINDLE

• Body Height:

  14.1 mm

• Body Length or Diameter:

  26.2 mm

• Bushing Length:

  0.315 inch

• Bushing Type:

  M10X0.75

• Center Contact Material:

  BRASS

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  1A@24VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@24VDC

• Contact Resistance:

  0.02 mΩ

• Contact Voltage(AC)-Max:

  24 V

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  SILVER

• Indexing Angle:

  30 deg

• Insulation Resistance:

  999000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE66

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  4

• Number of Switch Sections:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

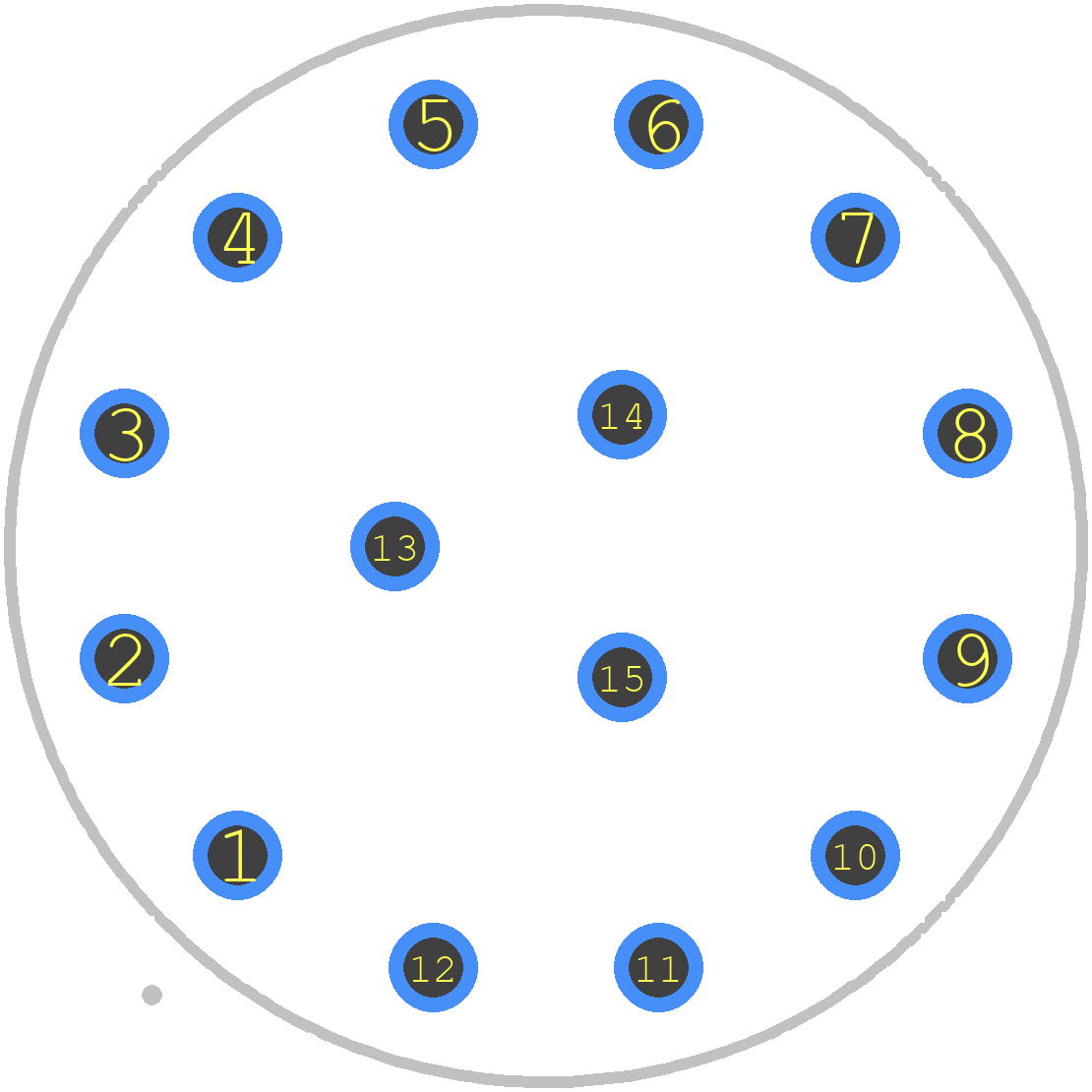

• PCB Hole Count:

  15

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  3P4T

• Switch Type:

  ROTARY SWITCH

• Terminal Length:

  0.157 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
