CK1054 - Lorlin

Description: Rotary Switches RTRY 1POL 12POS PCB 6.35X38MM FLAT SHAFT

Download CK1054 Model

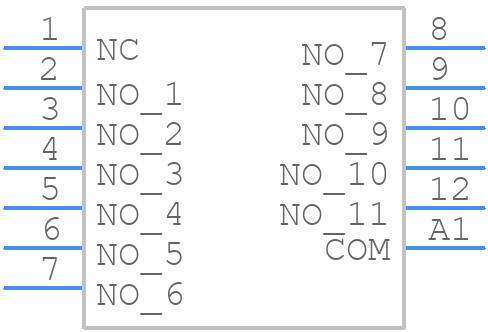

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

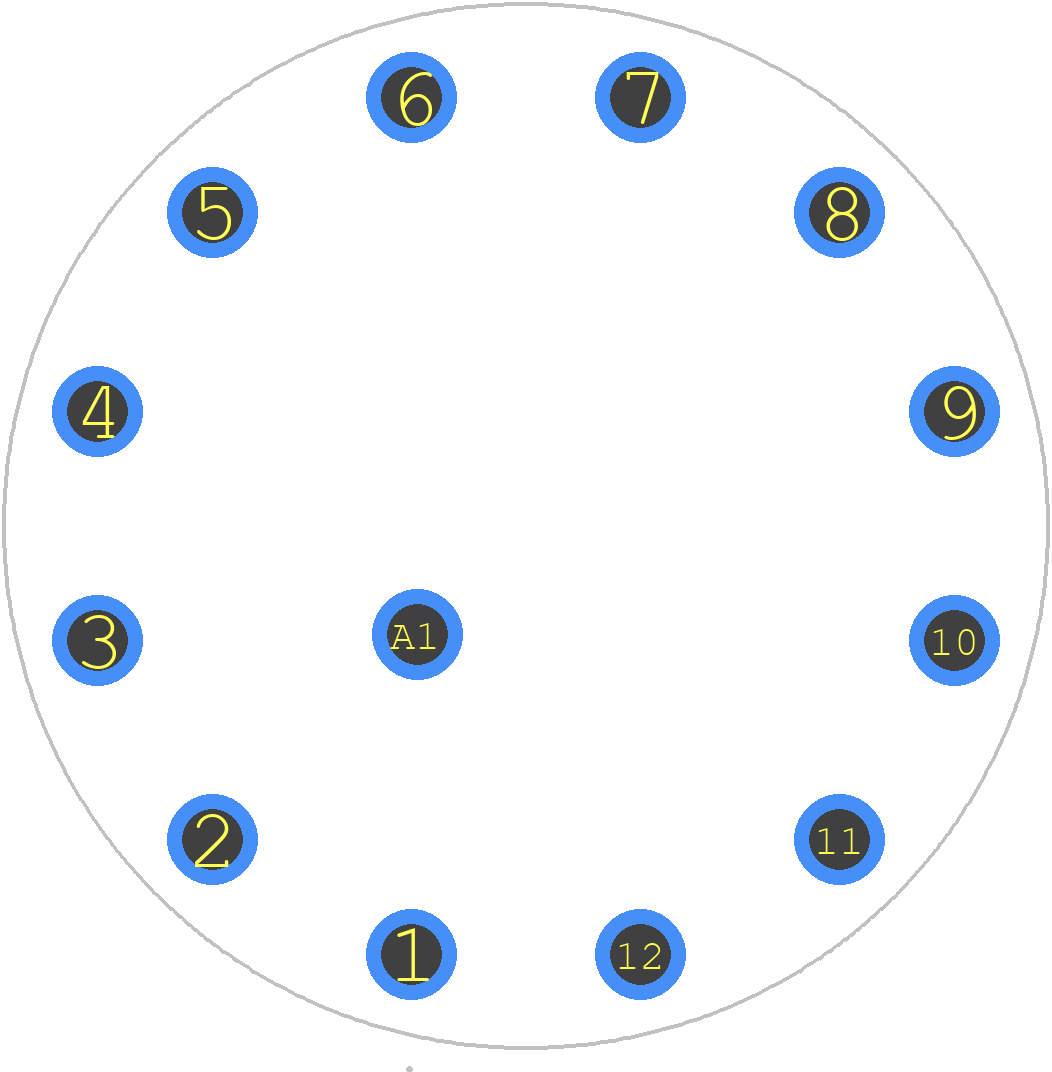

PCB Footprints
CK1054 - Lorlin PCB footprint - Other - Other - CK1059
click to zoom
3D Models
CK1054 - Lorlin  - 3D model - Other - CK1059
click to zoom

CK1054 Details

  • Manufacturer Part Number:

    CK1054

  • Part Life Cycle Code:

    Contact Manufacturer

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Manufacturer:

    Lorlin Electronics LTD

  • Actuator Type:

    SPINDLE

  • Body Height:

    14.1 mm

  • Body Length or Diameter:

    26.2 mm

  • Contact (AC) Max Rating R Load:

    .15A@250VAC

  • Contact Current(AC)-Max:

    0.15 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@24VDC

  • Contact Resistance:

    0.02 mΩ

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    1500VAC V

  • Electrical Life:

    10000 Cycle(s)

  • Indexing Angle:

    30 deg

  • Insulation Resistance:

    999000000 Ω

  • Mounting Feature:

    PANEL MOUNT-THREADED

  • Number of Positions:

    12

  • Number of Switch Sections:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SP12T

  • Switch Type:

    ROTARY SWITCH

  • Termination Type:

    SOLDER
