Part Image

CK45-B3DD222KYNNA - TDK

Description: Disc Type Capacitors with Lead (High Voltage Ceramic Capacitors), Capacitance=2.2nF, DxT: 10x5mm ,F: 5mm

Download CK45-B3DD222KYNNA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CK45-B3DD222KYNNA - TDK - PCB symbol
click to zoom
PCB Footprints

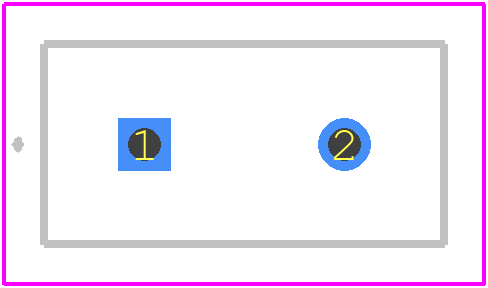

CK45-B3DD222KYNNA - TDK PCB footprint - Other - Other - CK45-B3DD222KYNNA
click to zoom
3D Models
CK45-B3DD222KYNNA - TDK - 3D model - Other - CK45-B3DD222KYNNA
click to zoom

CK45-B3DD222KYNNA Details

  • Manufacturer Part Number:

    CK45-B3DD222KYNNA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    0.0022 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    CERAMIC

  • Length:

    10 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    2000 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    B

  • Temperature Coefficient:

    10% ppm/°C

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    5 mm

CK45-B3DD222KYNNA Frequently Asked Questions (FAQs)

  • The recommended land pattern for CK45-B3DD222KYNNA can be found in the TDK Corporation's application note or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
  • To prevent damage, handle the CK45-B3DD222KYNNA component by the edges, avoid touching the pins or the component body, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The maximum operating temperature range for CK45-B3DD222KYNNA is -40°C to +125°C. Operating the component outside this range may affect its performance, reliability, or lifespan.
  • Yes, CK45-B3DD222KYNNA is designed to withstand vibrations. However, it's essential to follow the recommended mounting and soldering procedures to ensure the component's reliability in high-vibration environments.
  • Store CK45-B3DD222KYNNA components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid mixing different batches or expiration dates in the same storage container.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CK45-B3DD222KYNNA Overview

Use the download button to access the CK45-B3DD222KYNNA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CK45-, or try a keyword search, such as Ceramic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
