CK45-B3DD472KYNNA - TDK

Description: Disc Type Capacitors with Lead (High Voltage Ceramic Capacitors), Capacitance=4.7nF, DxT: 14x5mm ,F: 7.5mm

Download CK45-B3DD472KYNNA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CK45-B3DD472KYNNA - TDK - PCB symbol
click to zoom
PCB Footprints

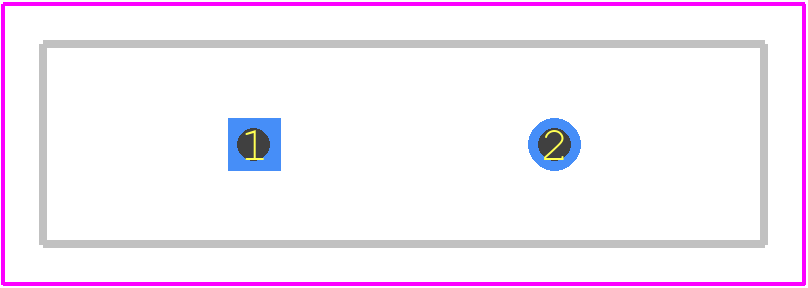

CK45-B3DD472KYNNA - TDK PCB footprint - Other - Other - CK45-B3DD472KYNNA-2
click to zoom
3D Models
CK45-B3DD472KYNNA - TDK - 3D model - Other - CK45-B3DD472KYNNA-2
click to zoom

CK45-B3DD472KYNNA Details

  • Manufacturer Part Number:

    CK45-B3DD472KYNNA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    0.0047 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    14 mm

  • Dielectric Material:

    CERAMIC

  • Length:

    14 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    2000 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    B

  • Temperature Coefficient:

    10% ppm/°C

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    5 mm

CK45-B3DD472KYNNA Frequently Asked Questions (FAQs)

  • The recommended land pattern for CK45-B3DD472KYNNA can be found in the TDK Corporation's application note or the datasheet's packaging information section. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent damage during the soldering process.
  • To prevent damage, handle the CK45-B3DD472KYNNA component by the edges, avoiding touching the pins or the component body. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Also, ensure the assembly area is clean and free from debris.
  • The maximum allowable voltage derating for CK45-B3DD472KYNNA is typically specified in the datasheet. However, as a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to account for any voltage fluctuations.
  • The CK45-B3DD472KYNNA is rated for operation up to 125°C. However, it's essential to consider the component's power dissipation, thermal resistance, and the overall system design to ensure reliable operation in high-temperature applications.
  • Store the CK45-B3DD472KYNNA component in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is typically between -10°C to 30°C, and the relative humidity should be below 70%.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CK45-B3DD472KYNNA Overview

Use the download button to access the CK45-B3DD472KYNNA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CK45-, or try a keyword search, such as Ceramic Capacitors
