CK45-B3DD472KYVNA - TDK

Description: Disc Type Capacitors with Lead (High Voltage Ceramic Capacitors), Capacitance=4.7nF, DxT: 14x5mm ,F: 7.5mm

Download CK45-B3DD472KYVNA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CK45-B3DD472KYVNA - TDK - PCB symbol
click to zoom
PCB Footprints

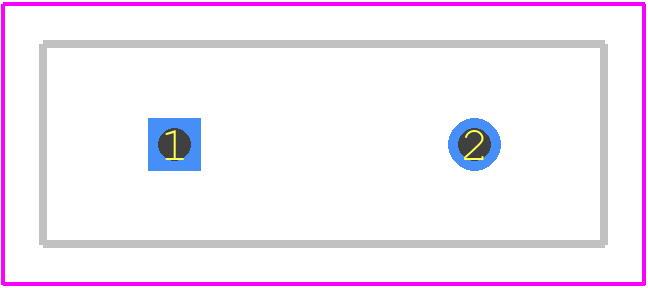

CK45-B3DD472KYVNA - TDK PCB footprint - Other - Other - CK45-B3DD472KYVNA-2
click to zoom
3D Models
CK45-B3DD472KYVNA - TDK - 3D model - Other - CK45-B3DD472KYVNA-2
click to zoom

CK45-B3DD472KYVNA Details

  • Manufacturer Part Number:

    CK45-B3DD472KYVNA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    0.0047 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    14 mm

  • Dielectric Material:

    CERAMIC

  • Length:

    14 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    2000 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    B

  • Temperature Coefficient:

    10% ppm/°C

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    5 mm

CK45-B3DD472KYVNA Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CK45-B3DD472KYVNA can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
  • To prevent damage, it is recommended to handle the CK45-B3DD472KYVNA component by the edges, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge. It is also essential to follow the recommended storage and handling procedures outlined in the TDK Corporation's documentation.
  • The maximum operating temperature range for the CK45-B3DD472KYVNA is -40°C to +125°C. However, it is essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range.
  • The CK45-B3DD472KYVNA is designed to withstand moderate vibration levels. However, if the application involves extreme vibration, it is recommended to consult with TDK Corporation's technical support team to determine the component's suitability for the specific environment.
  • To troubleshoot issues with the CK45-B3DD472KYVNA component, it is recommended to consult the TDK Corporation's documentation and application notes. Additionally, engineers can use standard debugging techniques such as signal tracing, voltage measurement, and visual inspection to identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CK45-B3DD472KYVNA Overview

Use the download button to access the CK45-B3DD472KYVNA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CK45-, or try a keyword search, such as Ceramic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
