Part Image

CK45-E3AD102ZYGNA - TDK

Description: Disc Type Capacitors with Lead (High Voltage Ceramic Capacitors), Capacitance=1nF, DxT: 5.5x5mm ,F: 5mm

Download CK45-E3AD102ZYGNA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CK45-E3AD102ZYGNA - TDK - PCB symbol
click to zoom
PCB Footprints

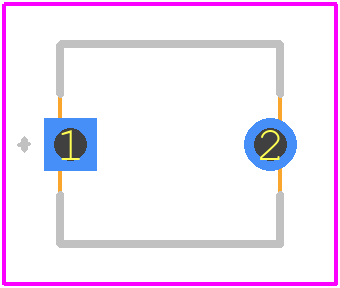

CK45-E3AD102ZYGNA - TDK PCB footprint - Other - Other - CK45-E3AD102ZYGNA-2
click to zoom
3D Models
CK45-E3AD102ZYGNA - TDK - 3D model - Other - CK45-E3AD102ZYGNA-2
click to zoom

CK45-E3AD102ZYGNA Details

  • Manufacturer Part Number:

    CK45-E3AD102ZYGNA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.04

  • Capacitance:

    0.001 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    5.5 mm

  • Dielectric Material:

    CERAMIC

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    E

  • Temperature Coefficient:

    -55/+20% ppm/°C

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    5 mm

CK45-E3AD102ZYGNA Frequently Asked Questions (FAQs)

  • The recommended land pattern for CK45-E3AD102ZYGNA can be found in the TDK Corporation's application note or footprint library. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent soldering issues.
  • While CK45-E3AD102ZYGNA has a rated operating temperature range of -55°C to +125°C, it's essential to consider the derating curves and temperature coefficients provided in the datasheet. Additionally, it's recommended to consult with TDK Corporation's application engineers to ensure the component meets the specific requirements of your high-temperature application.
  • To prevent damage during PCB assembly, it's recommended to follow standard handling and storage procedures for ESD-sensitive components. This includes using anti-static wrist straps, mats, and packaging materials. Additionally, avoid bending or flexing the component, and ensure that the PCB is properly cleaned and dried before assembly.
  • CK45-E3AD102ZYGNA is designed to meet the requirements of IPC/JEDEC J-STD-020D.1 for moisture sensitivity. However, it's still essential to follow proper handling and storage procedures to prevent moisture absorption. If your application requires operation in a humid or moist environment, consider using conformal coating or other environmental protection measures.
  • The recommended soldering profile for CK45-E3AD102ZYGNA can be found in the TDK Corporation's application note or soldering guide. It's essential to follow the recommended profile to ensure proper soldering and to prevent damage to the component.
