CKSR25-NP Frequently Asked Questions (FAQs)

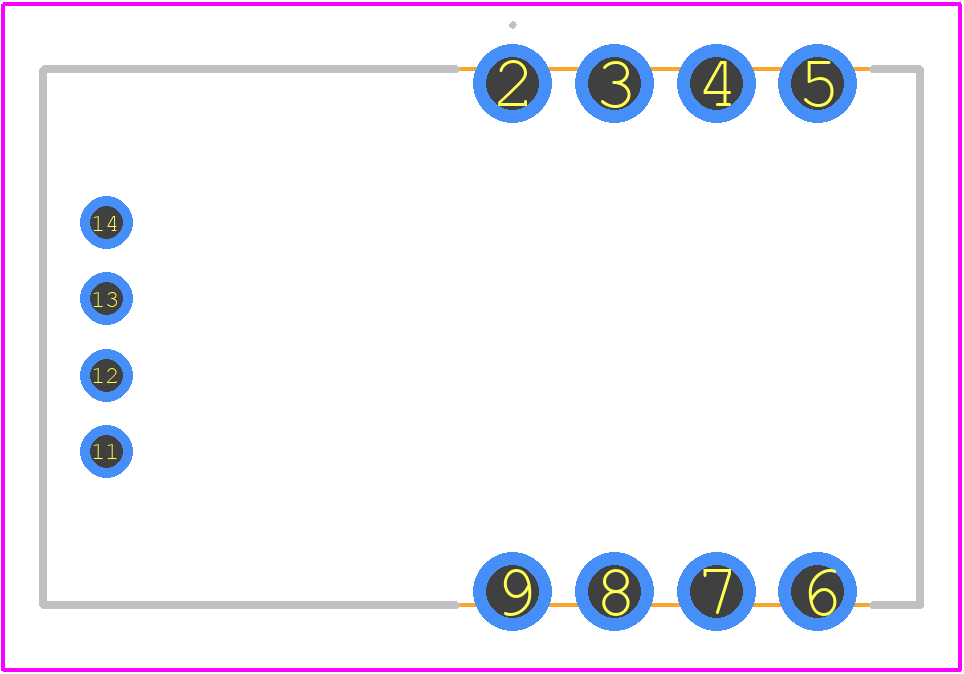

• What is the recommended PCB layout for optimal performance of the CKSR25-NP?
  The recommended PCB layout for the CKSR25-NP involves keeping the current path as short as possible, using a solid ground plane, and placing the device close to the current-carrying conductor. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize errors.
• How does the CKSR25-NP handle overcurrent conditions?
  The CKSR25-NP is designed to withstand overcurrent conditions up to 10 times the nominal current rating for a short duration (typically 10ms). However, it's essential to ensure that the device is properly cooled and that the overcurrent condition is removed as soon as possible to prevent damage.
• What is the typical response time of the CKSR25-NP to changes in current?
  The typical response time of the CKSR25-NP to changes in current is around 1-2 microseconds. However, this can vary depending on the specific application and the quality of the PCB layout.
• Can the CKSR25-NP be used in high-temperature environments?
  The CKSR25-NP is rated for operation up to 125°C, but it's essential to ensure that the device is properly cooled and that the temperature rating is not exceeded to prevent damage or degradation.
• How does the CKSR25-NP handle electromagnetic interference (EMI)?
  The CKSR25-NP is designed to be immune to electromagnetic interference (EMI) and radio-frequency interference (RFI) due to its closed-loop architecture and shielded design. However, it's still essential to follow proper EMI/RFI mitigation practices in the system design.
