- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CL-SA-12C4-02
- Part Number CL-SA-12C4-02
- Manufacturer Nidec Copal
- Pin Count 3
- Part Category Switch
- Package Category Other

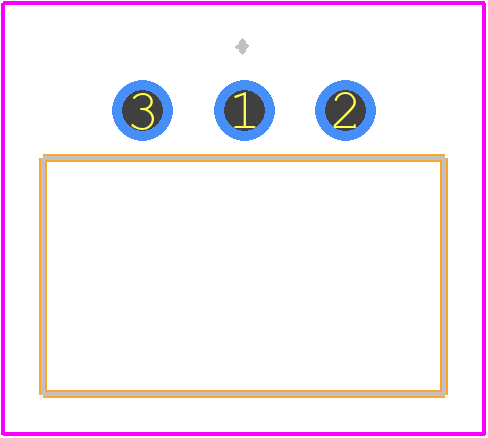

- Footprint Name Other - CL-SA-12C4-02-1
- Released Date Aug 12, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CL-SA-12C4-02 Details
-
Manufacturer Part Number:
CL-SA-12C4-02
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
15 Weeks
-
Manufacturer:
Nidec Copal Electronics Corporation
-
JESD-609 Code:
e4
-
Switch Type:
SLIDE SWITCH
-
Terminal Finish:
Gold (Au)
CL-SA-12C4-02 Frequently Asked Questions (FAQs)
-
The recommended storage temperature range for CL-SA-12C4-02 is -40°C to 85°C.
-
Yes, the CL-SA-12C4-02 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The typical operating temperature range for CL-SA-12C4-02 is -20°C to 70°C.
-
While the CL-SA-12C4-02 is designed to operate in a normal humidity environment, it's not recommended for use in extremely humid or wet conditions. If you need to use it in a humid environment, consider taking additional precautions such as conformal coating or sealing.
-
The maximum allowable vibration for CL-SA-12C4-02 is 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2000Hz.
Trust Checks
Expert Contribution
System Verified
Community Approved
CL-SA-12C4-02 Overview
Use the download button to access the CL-SA-12C4-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CL-SA,
or try a keyword search, such as Slide Switches
