The recommended storage condition for CL-SB-12B-01T is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 70%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
Handle the CL-SB-12B-01T by the edges or the body, avoiding touching the pins or electrical contacts. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage. Avoid bending, flexing, or applying excessive force to the component.
The recommended soldering profile for CL-SB-12B-01T is a peak temperature of 240°C for 3-5 seconds, with a preheat temperature of 150°C to 180°C. Avoid exceeding the maximum soldering temperature to prevent damage to the component.
While CL-SB-12B-01T is designed to withstand some vibration, it's essential to evaluate the specific vibration requirements of your application. If your application exceeds the recommended vibration limits, consider using additional mounting or securing methods to ensure the component's reliability.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or dust from the CL-SB-12B-01T. Avoid using chemicals, solvents, or liquids, as they may damage the component or compromise its performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CL-SB-12B-01T Overview

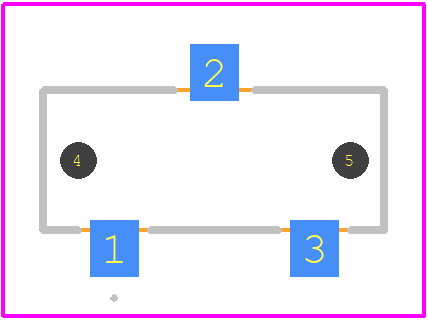

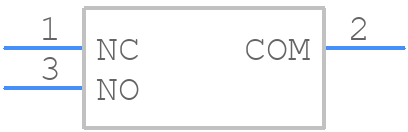

Use the download button to access the CL-SB-12B-01T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CL-SB,
or try a keyword search, such as Slide Switches
