CL-SB-22B-12T - Nidec Copal

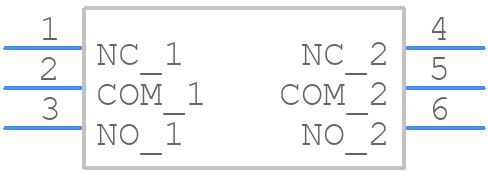

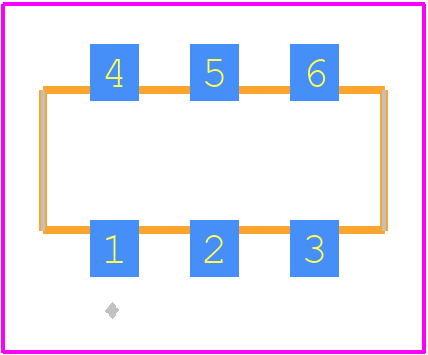

CL-SB-22B-12T Details

• Manufacturer Part Number:

  CL-SB-22B-12T

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  Nidec Copal Electronics Corporation

• YTEOL:

  5.85

• Actuator Length:

  0.079 inch

• Actuator Material:

  POLYAMIDE

• Actuator Type:

  SIDE TYPE

• Body Breadth:

  3.5 mm

• Body Height:

  3.5 mm

• Body Length or Diameter:

  8.5 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.2 A

• Contact (DC) Max Rating R Load:

  .2A@12VDC

• Contact Resistance:

  0.07 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(DC)-Max:

  12 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  POLYPHENYLENE SULPHIDE

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYPHENYLENE SULPHIDE

• Mounting Feature:

  SURFACE MOUNT-RIGHT ANGLE

• Number of Positions:

  2

• Operating Force-Max:

  2.5 N

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TR

• Solderability:

  REFLOW

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
