MaxLinear provides a recommended PCB layout guide in their application note AN5141, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CLC1002ISO8X has a programmable input voltage range, which can be configured using the VREF pin. The device can be configured for input voltage ranges from 10V to 100V by adjusting the VREF voltage and the external resistors R1 and R2. Refer to the datasheet for specific configuration details.
The CLC1002ISO8X has an operating temperature range of -40°C to +125°C, making it suitable for use in industrial and automotive applications. However, the device's performance may degrade at extreme temperatures, and thermal management is recommended to ensure reliable operation.
To ensure EMC, follow the recommended PCB layout guidelines, use a shielded enclosure, and implement proper filtering and shielding techniques. Additionally, ensure that the device is operated within its specified frequency range and that the input and output signals are properly terminated.
The typical power consumption of the CLC1002ISO8X is around 1.5W, but this can vary depending on the input voltage, output current, and operating frequency. Refer to the datasheet for specific power consumption details and thermal management recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CLC1002ISO8X Overview

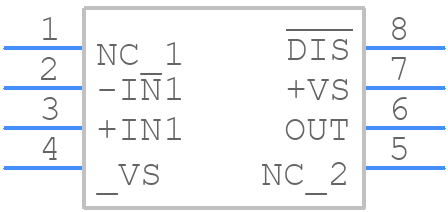

Use the download button to access the CLC1002ISO8X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CLC10,
or try a keyword search, such as Operational Amplifiers
