CLF12577NIT-6R8N-D - TDK

Description: TDK CLF-NI-D Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±30% Wire-Wound

Download CLF12577NIT-6R8N-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CLF12577NIT-6R8N-D - TDK - PCB symbol
click to zoom
PCB Footprints

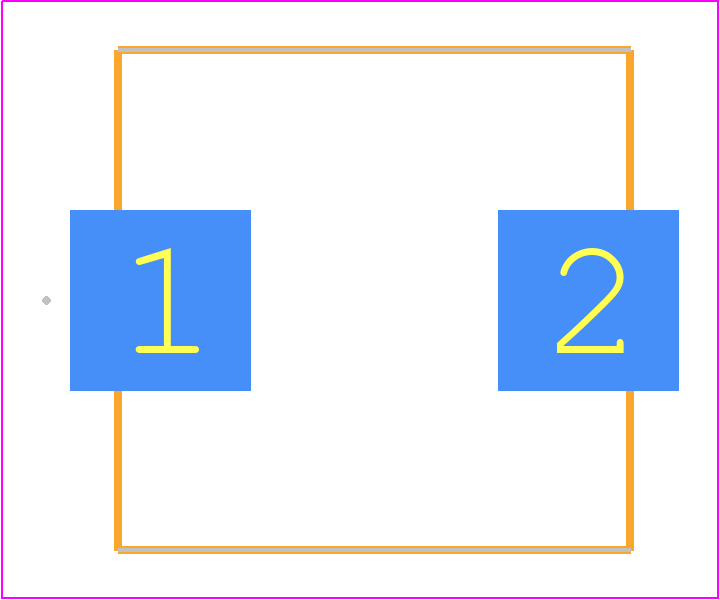

CLF12577NIT-6R8N-D - TDK PCB footprint - Other - Other - CLF12577NI-D
click to zoom
3D Models
CLF12577NIT-6R8N-D - TDK - 3D model - Other - CLF12577NI-D
click to zoom

CLF12577NIT-6R8N-D Details

  • Manufacturer Part Number:

    CLF12577NIT-6R8N-D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Case/Size Code:

    5049

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.01 Ω

  • Inductance-Nom (L):

    6.8 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    7.7 mm

  • Package Length:

    12.8 mm

  • Package Style:

    SMT

  • Package Width:

    12.5 mm

  • Packing Method:

    TR, BLISTER PLASTIC, 13 INCH

  • Rated Current-Max:

    8.5 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DCR IS MEASURED AT 30% TOLERANCE

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

CLF12577NIT-6R8N-D Frequently Asked Questions (FAQs)

  • The recommended land pattern for CLF12577NIT-6R8N-D can be found in the TDK Corporation's application note or footprint library. It is essential to follow the recommended land pattern to ensure proper mounting and to prevent soldering issues.
  • While the CLF12577NIT-6R8N-D is rated for operation up to 125°C, it's essential to consider the derating curves and temperature coefficients to ensure the component's performance and reliability in high-temperature environments. Consult with TDK Corporation's application engineers or technical support for specific guidance.
  • To prevent damage during PCB assembly, handle the CLF12577NIT-6R8N-D by the edges, avoid touching the component's terminals, and use an anti-static wrist strap or mat. Also, ensure that the PCB is properly cleaned and dried before assembly to prevent moisture-related issues.
  • The CLF12577NIT-6R8N-D is designed to withstand certain levels of vibration, but it's crucial to evaluate the component's performance in the specific vibration environment. Consult with TDK Corporation's application engineers or technical support to determine the component's suitability for your application.
  • The recommended soldering profile for CLF12577NIT-6R8N-D can be found in the TDK Corporation's application note or soldering guide. A typical reflow soldering profile includes a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C.
