CLRC66301HN - NXP

Description: HVQFN32: plastic thermal enhanced very thin quad flat package; no leads; 32 terminals; body 5 x 5 x 0.85 mm

Download CLRC66301HN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

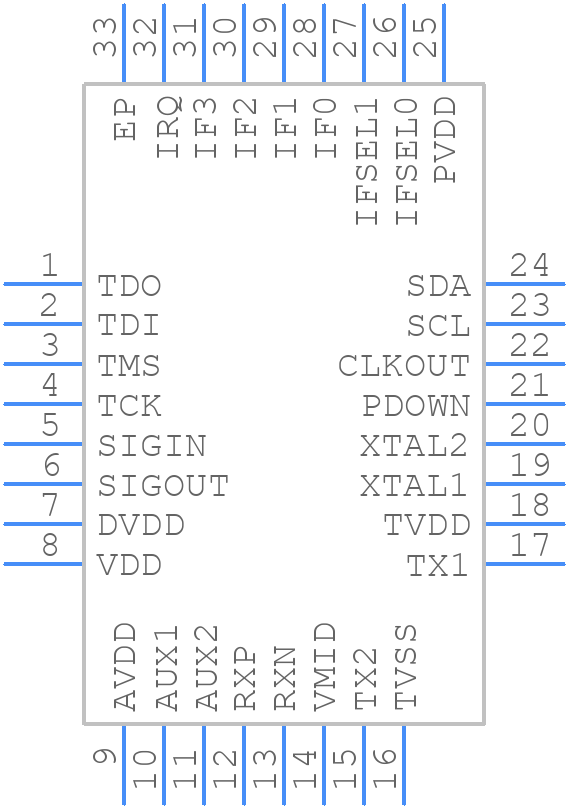

CLRC66301HN - NXP - PCB symbol
click to zoom
PCB Footprints
CLRC66301HN - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT617-1
click to zoom
3D Models
CLRC66301HN - NXP - 3D model - Quad Flat No-Lead - SOT617-1
click to zoom

CLRC66301HN Details

  • Manufacturer Part Number:

    CLRC66301HN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5 X 5 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT617-1, HVQFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

CLRC66301HN Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CLRC66301HN is 2.7V to 5.5V.
  • The CLRC66301HN can be configured for different NFC modes (e.g. reader, writer, peer-to-peer) using the device's registers and configuration bits. Refer to the application note AN11579 for more information.
  • The maximum data transfer rate of the CLRC66301HN is 424 kbps.
  • Antenna tuning for the CLRC66301HN involves optimizing the antenna design and matching network to achieve maximum power transfer efficiency. Refer to the application note AN11580 for more information.
  • The power consumption of the CLRC66301HN varies depending on the mode of operation. In idle mode, the power consumption is typically around 10 μA, while in active mode it can range from 10 mA to 30 mA depending on the frequency and data transfer rate.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CLRC66301HN Overview

Use the download button to access the CLRC66301HN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CLRC6, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
