Part Image

CLRC66303HNE - NXP

Description: NFC/RFID Tags & Transponders CL READER IC'S

Download CLRC66303HNE Model

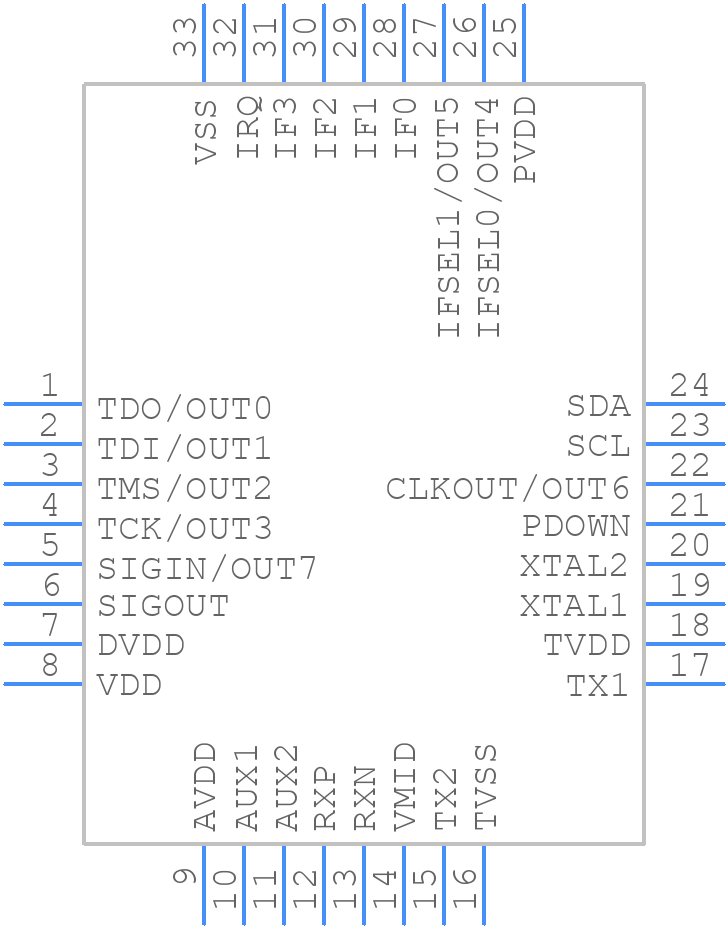

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CLRC66303HNE - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT617-1
click to zoom
3D Models
CLRC66303HNE - NXP  - 3D model - Quad Flat No-Lead - SOT617-1
click to zoom

CLRC66303HNE Details

  • Manufacturer Part Number:

    CLRC66303HNE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVQFN-32

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

CLRC66303HNE Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CLRC66303HNE is 2.7V to 5.5V.
  • The CLRC66303HNE can be configured for different communication protocols such as ISO/IEC 14443, ISO/IEC 18092, and NFCIP-1 through the use of registers and configuration bits. Refer to the datasheet and application notes for specific configuration details.
  • The maximum data transfer rate of the CLRC66303HNE is 424 kbps.
  • Antenna tuning for the CLRC66303HNE involves selecting the appropriate antenna design and impedance matching network to optimize the performance of the NFC interface. Refer to the application notes and antenna design guides for specific implementation details.
  • The CLRC66303HNE has a typical active mode current consumption of 10mA and a typical standby mode current consumption of 10uA. The device also has a power-down mode with a typical current consumption of 1uA.
