CM108AH - C-MEDIA ELECTRONICS INC

Description: LQFP-48(7x7) Audio Interface ICs ROHS

Download CM108AH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

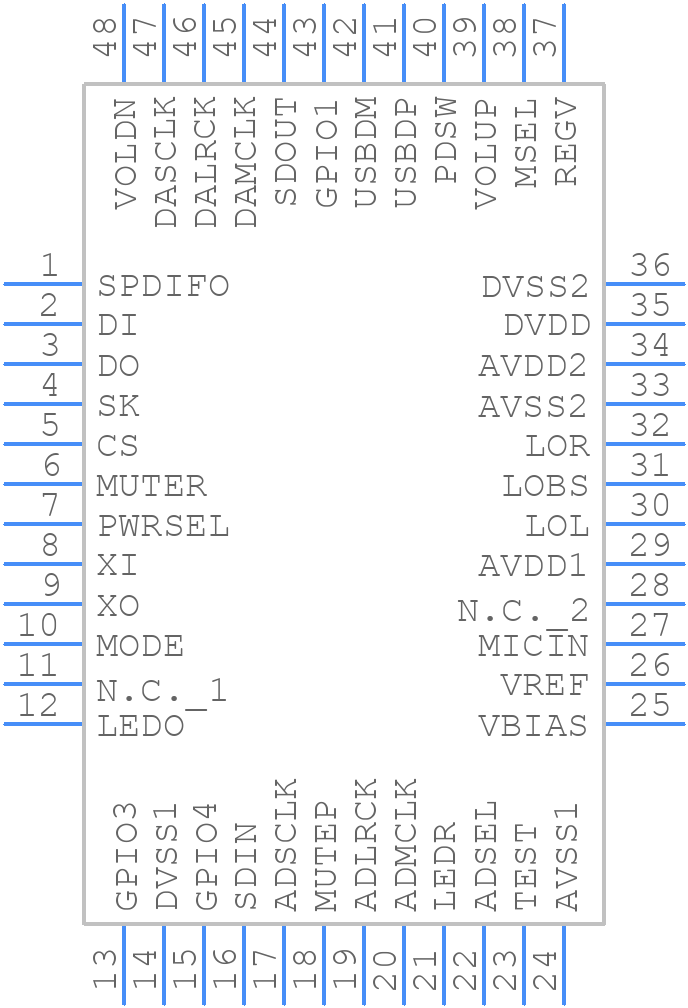

CM108AH - C-MEDIA ELECTRONICS INC - PCB symbol
click to zoom
PCB Footprints
CM108AH - C-MEDIA ELECTRONICS INC PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48
click to zoom
3D Models
CM108AH - C-MEDIA ELECTRONICS INC - 3D model - Quad Flat Packages - LQFP48
click to zoom

CM108AH Details

  • Manufacturer Part Number:

    CM108AH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    C-Media Electronics Inc

  • JESD-30 Code:

    S-PQFP-G48

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -15 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

CM108AH Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CM108AH is -40°C to 85°C.
  • To configure the CM108AH for stereo audio output, set the STEREO pin high and ensure that the I2S format is set to 16-bit or 24-bit.
  • The maximum power consumption of the CM108AH is approximately 120mA when operating at 3.3V.
  • Yes, the CM108AH can be used for audio playback and recording simultaneously, but it requires careful configuration of the device's pins and registers.
  • To implement echo cancellation on the CM108AH, use the device's built-in Acoustic Echo Cancellation (AEC) feature, which can be enabled through the AEC_EN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CM108AH Overview

Use the download button to access the CM108AH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CM108, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
