A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
Use X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of 25V or higher for input and output filtering.
Use a shielded enclosure, keep sensitive components away from the CM1693-04DE, and implement a common-mode choke or ferrite bead on the input lines.
Apply the input voltage (VIN) first, followed by the enable signal (EN). Ensure the input voltage is stable before enabling the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CM1693-04DE Overview

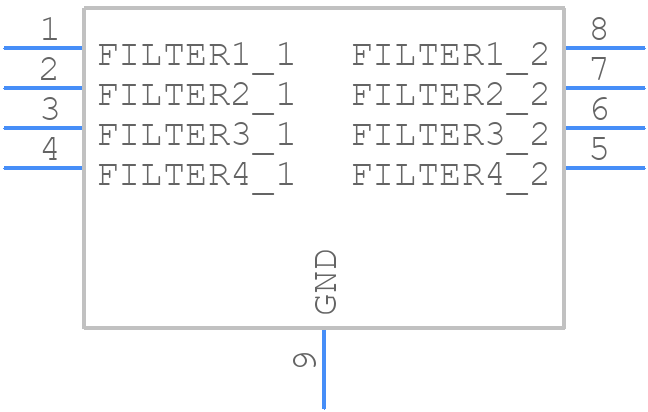

Use the download button to access the CM1693-04DE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CM169,
or try a keyword search, such as Data Line Filters
