CM1AF-P-24V - Panasonic

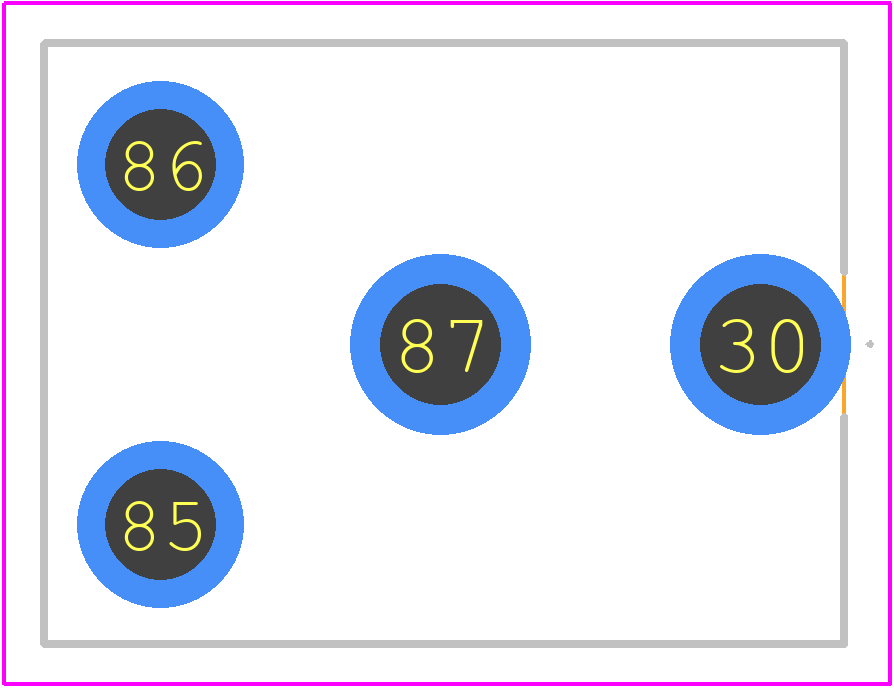

CM1AF-P-24V Details

• Manufacturer Part Number:

  CM1AF-P-24V

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.05

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6.87

• Body Breadth:

  15 mm

• Body Height:

  23 mm

• Body Length or Diameter:

  20 mm

• Coil Current(DC)-Max:

  0.075 A

• Coil Operate Voltage(DC):

  14 V

• Coil Power:

  1800 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  320 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  8 A

• Contact (DC) Max Rating R Load:

  8A@28VDC

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  100000 Cycle(s)

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operate Time:

  10 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; BULK

• Physical Dimension:

  20mm x 15mm x 23mm

• Relay Action:

  MOMENTARY

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Sealing:

  EPOXY RESIN SEALED

• Surface Mount:

  NO

• Termination Type:

  SOLDER
