CM6296R-304 - API Delevan

CM6296R-304 Frequently Asked Questions (FAQs)

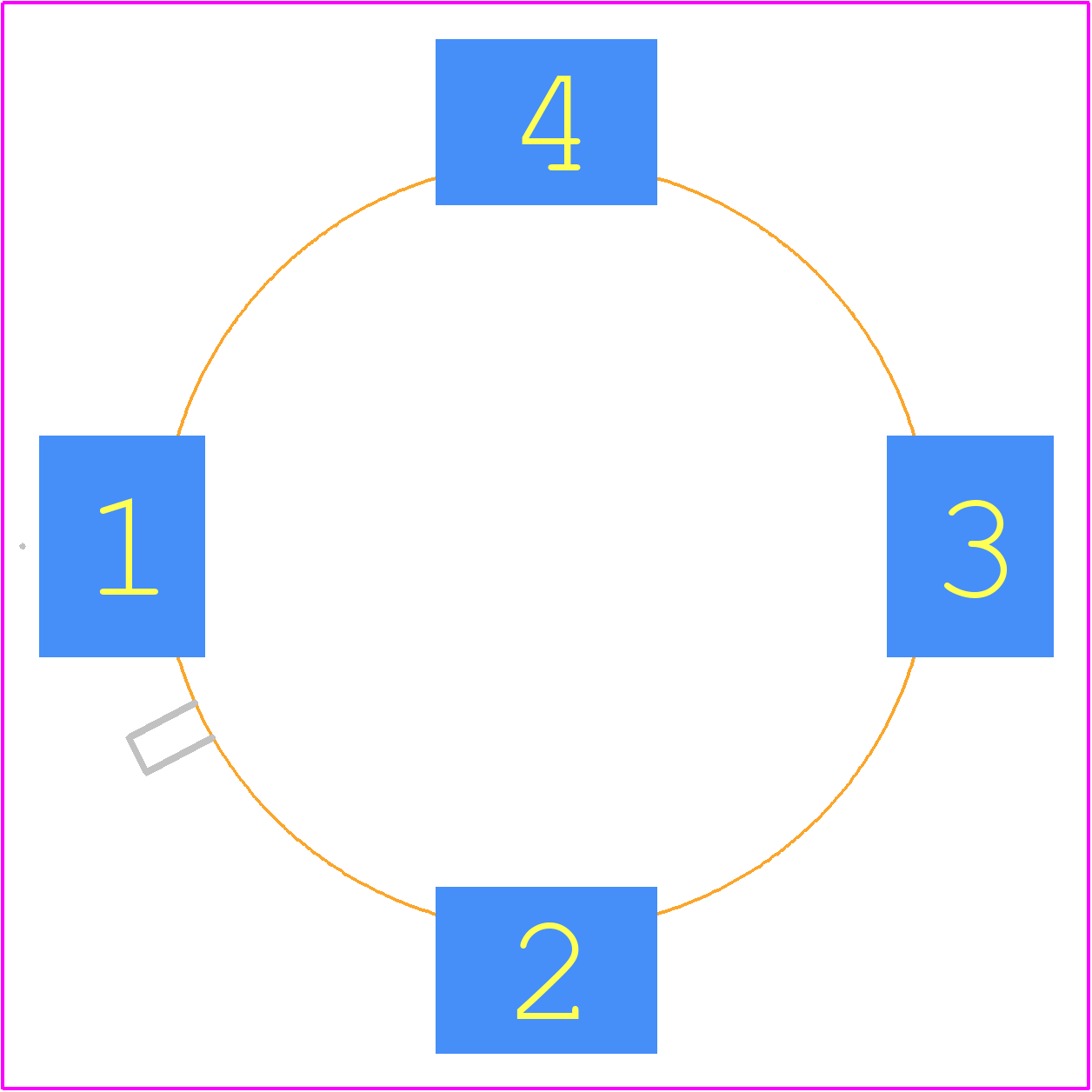

• What is the recommended PCB layout and land pattern for optimal performance?
  API Delevan recommends following the IPC-7351 standard for land pattern design and PCB layout. Additionally, it's essential to ensure a solid ground plane and minimize signal trace lengths to reduce parasitic inductance and capacitance.
• How do I handle the thermal management of the CM6296R-304?
  The CM6296R-304 has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking, such as a thermal pad or heat sink, and maintain a maximum ambient temperature of 85°C.
• What is the recommended soldering process for the CM6296R-304?
  API Delevan recommends using a reflow soldering process with a peak temperature of 260°C and a dwell time of 20-30 seconds. Hand soldering is not recommended due to the component's small size and high thermal sensitivity.
• Can I use the CM6296R-304 in a high-reliability or aerospace application?
  The CM6296R-304 is a commercial-grade component, and its use in high-reliability or aerospace applications may require additional testing and qualification. Engineers should consult with API Delevan or a qualified representative to discuss specific requirements and potential customization options.
• How do I troubleshoot common issues or faults with the CM6296R-304?
  Common issues with the CM6296R-304 include overheating, electrical overstress, and soldering defects. Engineers should consult the datasheet and application notes for troubleshooting guidelines and contact API Delevan's technical support for further assistance.
