The recommended PCB land pattern for the CM6460R-105 is a rectangular pad with a minimum size of 50 mils x 30 mils, with a non-solder mask defined (NSMD) pad shape.
The CM6460R-105 has a maximum operating temperature of 125°C. Ensure good airflow around the component, and consider using a thermal interface material (TIM) to improve heat transfer between the inductor and the PCB.
The recommended soldering profile for the CM6460R-105 is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C. Use a solder with a melting point above 217°C.
Yes, the CM6460R-105 is designed to withstand vibrations up to 20 G's, making it suitable for use in high-vibration environments. However, ensure proper PCB mounting and secure the component to prevent movement.
To ensure the CM6460R-105 meets your application's EMI requirements, use proper PCB layout techniques, such as separating the inductor from other components, using a shielded enclosure, and implementing EMI filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CM6460R-105 Overview

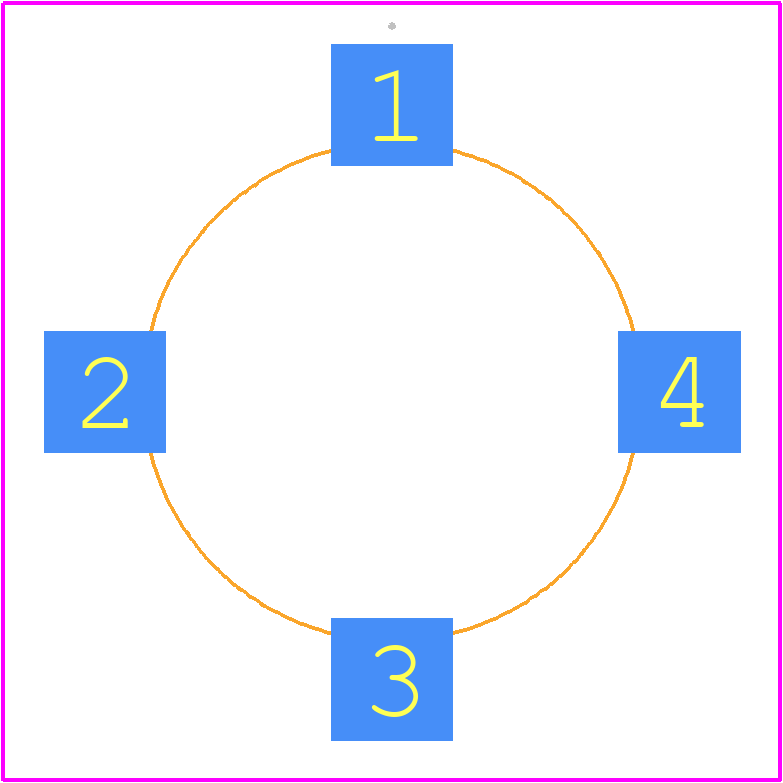

Use the download button to access the CM6460R-105 schematic symbol and PCB footprint.
