CM6460R-224 - API Delevan

Description: 220 µH @ 10 kHz 2 Line Common Mode Choke Surface Mount 5A DCR 12mOhm

Download CM6460R-224 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CM6460R-224 - API Delevan - PCB symbol
click to zoom
PCB Footprints

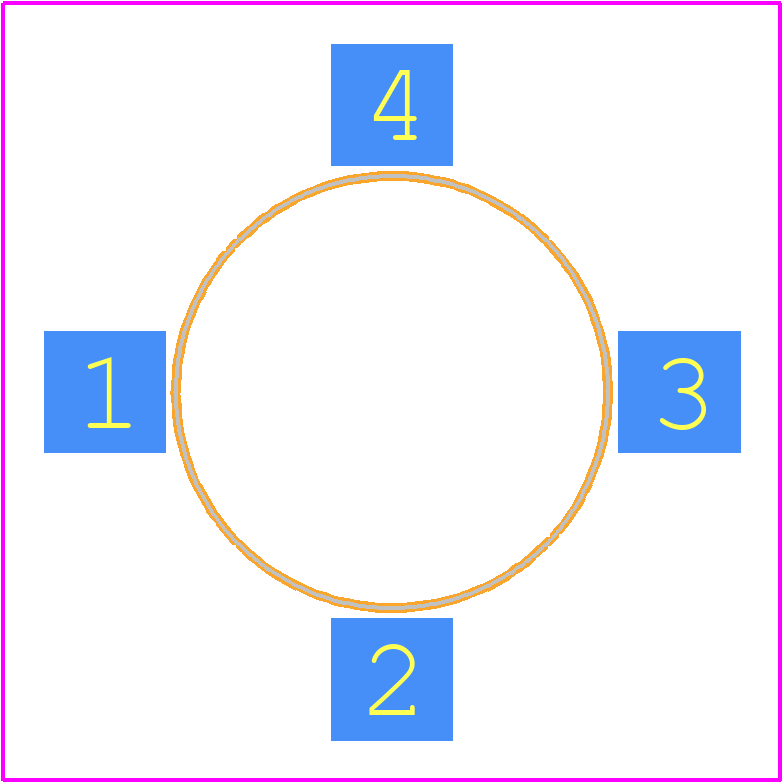

CM6460R-224 - API Delevan PCB footprint - Other - Other - CM6460R-224-2
click to zoom
3D Models
CM6460R-224 - API Delevan - 3D model - Other - CM6460R-224-2
click to zoom

CM6460R-224 Details

  • Manufacturer Part Number:

    CM6460R-224

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    API Delevan

  • YTEOL:

    6

  • DC Resistance-Max:

    0.012 Ω

  • Diameter:

    12.44 mm

  • Filter Type:

    DATA LINE FILTER

  • Height:

    7.37 mm

  • Inductance:

    220 µH

  • JESD-609 Code:

    e3

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    5 A

  • Terminal Finish:

    Tin (Sn)

CM6460R-224 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. API Delevan provides a reference design guide for optimal PCB layout.
  • Use a heat sink with a thermal interface material, and ensure good airflow around the component. The recommended operating temperature range is -40°C to 85°C.
  • The maximum allowable voltage transient is 1.5 times the rated voltage for a duration of 100ms. Exceeding this may cause damage to the component.
  • Yes, the CM6460R-224 is designed for high-reliability applications. API Delevan provides a separate datasheet for the aerospace-grade version, which includes additional screening and testing.
  • Consult the API Delevan application note for troubleshooting guidelines, which include checking for proper PCB layout, thermal management, and voltage regulation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CM6460R-224 Overview

Use the download button to access the CM6460R-224 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CM646, or try a keyword search, such as Data Line Filters
