CM6560R-184 - API Delevan

Description: Common Mode Chokes / Filters 180uH 25% .007ohm Choke SMT Common

Download CM6560R-184 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CM6560R-184 - API Delevan - PCB symbol
click to zoom
PCB Footprints

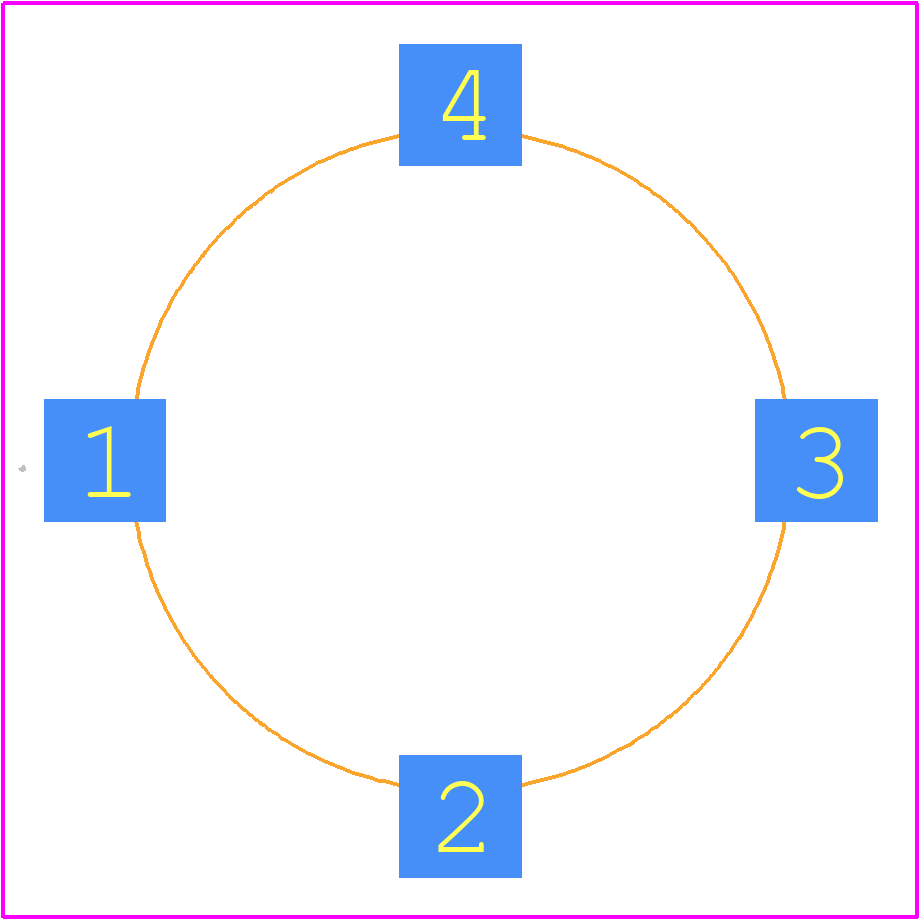

CM6560R-184 - API Delevan PCB footprint - Other - Other - CM6560R-184-5
click to zoom

CM6560R-184 Details

  • Manufacturer Part Number:

    CM6560R-184

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    API Delevan

  • YTEOL:

    6

  • Additional Feature:

    BULK

  • DC Resistance-Max:

    0.007 Ω

  • Diameter:

    15.8 mm

  • Filter Type:

    DATA LINE FILTER

  • Height:

    8.5 mm

  • Inductance:

    180 µH

  • JESD-609 Code:

    e3

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 13 Inch

  • Rated Current:

    7 A

  • Terminal Finish:

    Tin (Sn)

CM6560R-184 Frequently Asked Questions (FAQs)

  • API Delevan recommends a specific PCB layout and land pattern to ensure optimal performance and minimize parasitic effects. It's best to consult with API Delevan's application notes or contact their technical support for customized guidance.
  • The CM6560R-184 is designed to handle high-frequency switching conditions, but the datasheet doesn't provide explicit information. Engineers should consult API Delevan's application notes or contact their technical support for guidance on specific use cases.
  • The CM6560R-184 has a maximum junction temperature of 150°C. Engineers should ensure proper thermal management, such as heat sinking and airflow, to prevent overheating and ensure reliable operation.
  • The CM6560R-184 is a commercial-grade component, and its use in high-reliability or safety-critical applications may require additional testing and validation. Engineers should consult with API Delevan's technical support to determine the component's suitability for such applications.
  • The CM6560R-184 is designed to minimize EMI and RFI, but engineers should still take precautions to ensure proper shielding, grounding, and layout to prevent electromagnetic interference.
