CMA-545G1+ - Mini-Circuits

Description: SMT Low Noise Amplifier, 400 - 2200 MHz, 50Ω

Download CMA-545G1+ Model

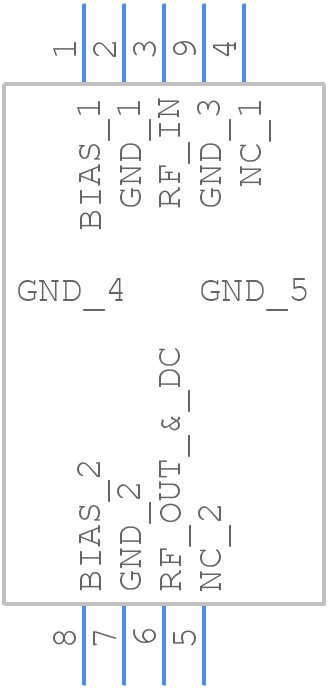

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMA-545G1+ - Mini-Circuits PCB footprint - Other - Other - DL1721_2022
click to zoom
3D Models
CMA-545G1+ - Mini-Circuits  - 3D model - Other - DL1721_2022
click to zoom

CMA-545G1+ Details

  • Manufacturer Part Number:

    CMA-545G1+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.03

  • Additional Feature:

    HIGH RELIABILITY

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    28.1 dB

  • Input Power-Max (CW):

    25 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    186 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    1.18

CMA-545G1+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The amplifier should be placed near the edge of the board to minimize noise coupling. A low-impedance path to ground is essential for the amplifier's input and output pins.
  • The CMA-545G1+ requires a bias voltage of 5V and a bias current of 120mA. Ensure that the bias voltage is well-regulated and noise-free, and that the bias current is set correctly using a resistor network or a dedicated bias circuit.
  • The CMA-545G1+ can handle input powers up to +10dBm without damage. However, for optimal performance and linearity, it's recommended to keep the input power below +5dBm.
  • To prevent oscillations, ensure that the amplifier is properly decoupled from the power supply using capacitors and resistors. Also, use a low-pass filter or a ferrite bead to isolate the amplifier from the power supply. Additionally, ensure that the PCB layout is well-designed and that there are no unintended feedback paths.
