- Part Number CMA-62+
- Manufacturer Mini-Circuits
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - CMA-62+-2
- Released Date Apr 26, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMA-62+ Details
-
Manufacturer Part Number:
CMA-62+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.83
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
14 dB
-
Input Power-Max (CW):
24 dBm
-
Operating Frequency-Max:
6000 MHz
CMA-62+ Frequently Asked Questions (FAQs)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. A good rule of thumb is to keep the traces within 1/4 inch of the amplifier's pins.
-
To ensure stability, make sure to follow the recommended PCB layout, use a sufficient decoupling capacitor (e.g. 100nF) between the power supply and the amplifier's VCC pin, and avoid long input and output traces.
-
The CMA-62+ can handle up to +10 dBm of input power without damage. However, for optimal performance, it's recommended to keep the input power below +5 dBm.
-
Yes, the CMA-62+ can be used as a buffer amplifier. Its high input impedance and low output impedance make it suitable for buffering weak signals or driving heavy loads.
-
The CMA-62+ is designed to operate up to 85°C. At high temperatures, the amplifier's gain and noise figure may degrade slightly, but it will still operate within its specified parameters.
Trust Checks
Expert Contribution
System Verified
Community Approved
CMA-62+ Overview

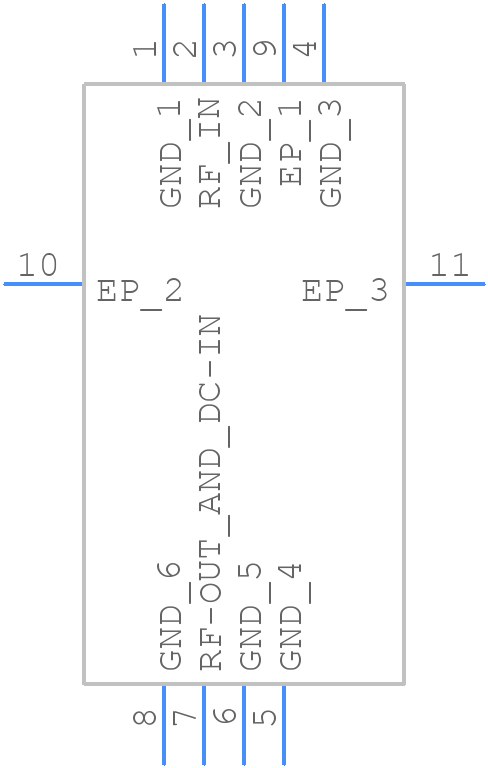

Use the download button to access the CMA-62+ schematic symbol, PCB footprint, and 3D model.
