CMA7W22Y1PM - Bernier

Description: 22 Position Circular Connector Receptacle, Male Pins Solder Cup

Download CMA7W22Y1PM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

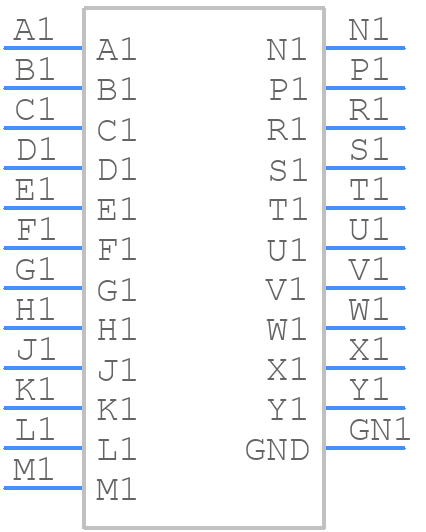

CMA7W22Y1PM - Bernier - PCB symbol
click to zoom
PCB Footprints

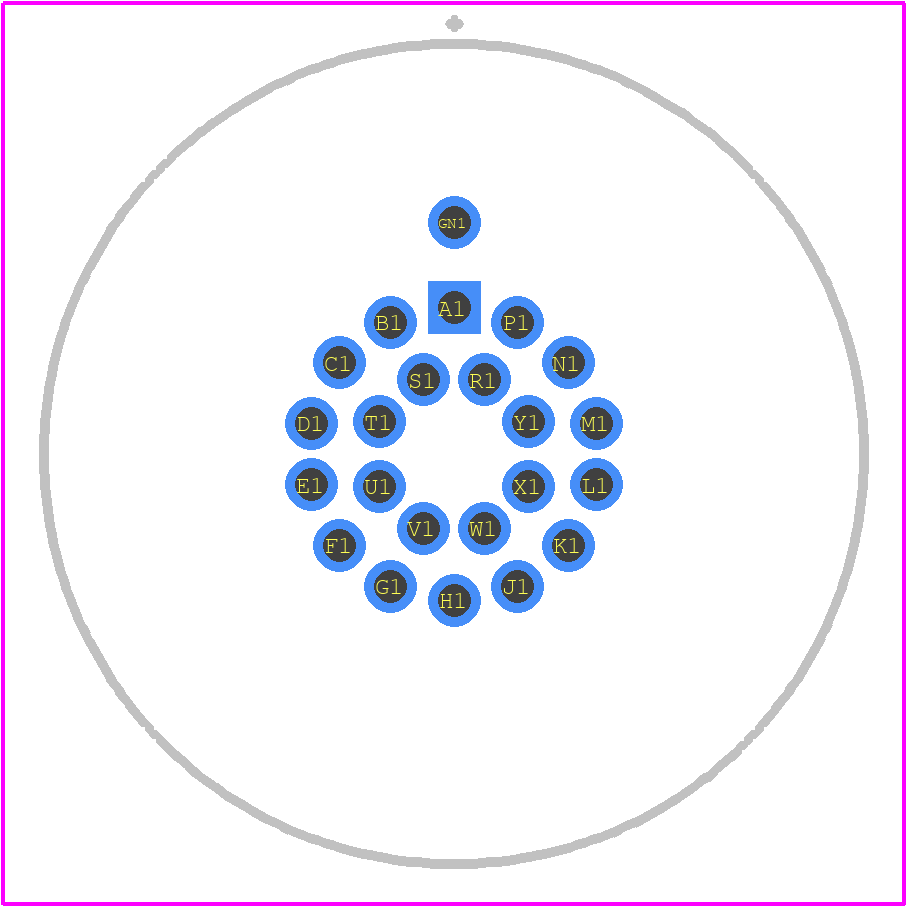

CMA7W22Y1PM - Bernier PCB footprint - Other - Other - CMA7W22Y1PM
click to zoom
3D Models
CMA7W22Y1PM - Bernier - 3D model - Other - CMA7W22Y1PM
click to zoom

CMA7W22Y1PM Details

  • Manufacturer Part Number:

    CMA7W22Y1PM

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Bernier Relais et Connecteurs

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    WATERPROOF

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    22

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMA7W22Y1PM Overview

Use the download button to access the CMA7W22Y1PM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMA7W, or try a keyword search, such as Other Circular Connectors
