CMB02070X1000GB200 - Vishay

Description: 100 Ohms ±2% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Carbon Film

Download CMB02070X1000GB200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CMB02070X1000GB200 - Vishay - PCB symbol
click to zoom
PCB Footprints

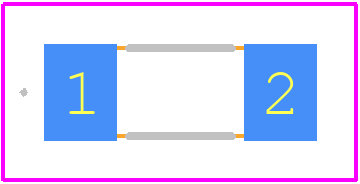

CMB02070X1000GB200 - Vishay PCB footprint - Other - Other - 0207_2025-2.1
click to zoom
3D Models
CMB02070X1000GB200 - Vishay - 3D model - Other - 0207_2025-2.1
click to zoom

CMB02070X1000GB200 Details

  • Manufacturer Part Number:

    CMB02070X1000GB200

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MELF

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.10.00.42

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    ANTI-SULFUR, RATED AC VOLTAGE: 500V

  • Construction:

    Cylindrical

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.2 mm

  • Package Length:

    5.8 mm

  • Package Style:

    SMT

  • Packing Method:

    TR, BLISTER, 7 INCH

  • Rated Power Dissipation (P):

    0.4 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; VDE

  • Resistance:

    100 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2309

  • Surface Mount:

    YES

  • Technology:

    CARBON FILM

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    2%

  • Working Voltage:

    500 V

CMB02070X1000GB200 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CMB02070X1000GB200 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for PCB layout and land pattern design.
  • The CMB02070X1000GB200 has a thermal resistance of 10°C/W. To ensure proper thermal management, it is recommended to use a heat sink or a thermal interface material with a thermal conductivity of at least 1 W/m-K.
  • The CMB02070X1000GB200 has an operating temperature range of -55°C to 150°C. However, it is recommended to derate the component's power rating at high temperatures to ensure reliable operation.
  • Yes, the CMB02070X1000GB200 is designed for high-reliability applications and meets the requirements of MIL-PRF-49470. However, it is recommended to consult with Vishay Intertechnologies' application engineers to ensure that the component meets the specific requirements of your application.
  • The recommended soldering profile for the CMB02070X1000GB200 is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
